Differential-drive/output for BMW 3 Series E90 325d (2008)

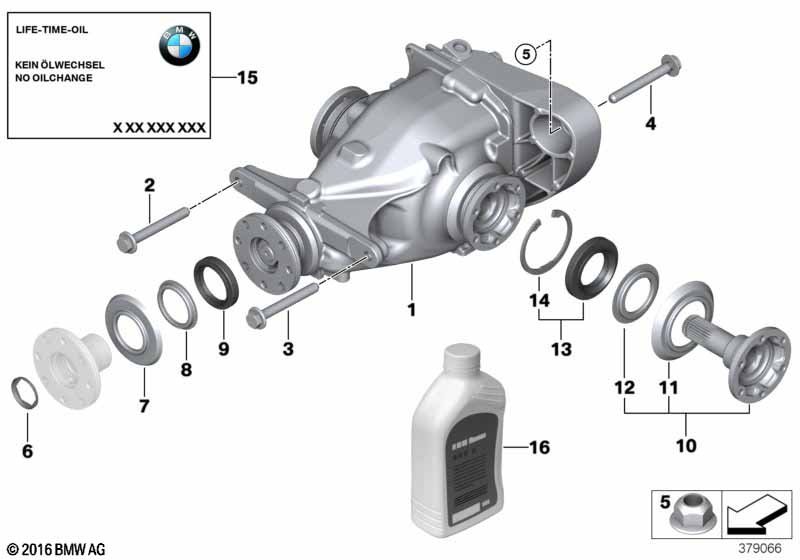

This Differential-drive/output technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear-axle-drive | I=2,35 | 1 | 33107571189 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M12X1,5X100 | 1 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M12X1,5X100 | 1 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M14X1,5X110 | 1 | 01/2009 | 33176760342 | $3.50 | Shop at ECS Tuning | |||
| 05 | Combination nut | M14X1,5-10ZNS3 | 1 | 33326760380 | $2.48 | Shop at ECS Tuning | ||||
| 06 | Securing plate | 1 | 33121205138 | $1.33 | Shop at ECS Tuning | |||||
| Important! Drive flange and nut must not be replaced. |
||||||||||
| 07 | dustcover plate, large | 1 | 33127518511 | $2.11 | Shop at ECS Tuning | |||||
| 08 | dustcover plate, small | 1 | 33121214064 | $0.84 | Shop at ECS Tuning | |||||
| 09 | Shaft seal | 50X78X10 AW 215 | 1 | 33107609536 | Shop at ECS Tuning | |||||
| 10 | Drive flange output | VL-107 | 2 | 33131213986 | $74.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shaft seal with lock ring | 100X50X10 | 2 | 33107505605 | $20.09 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 11 | Dust guard ring, outer | D=80 | 2 | 33131214445 | $1.57 | Shop at ECS Tuning | ||||
| 12 | Dust guard ring, inner | D=54 | 2 | 33131214446 | $1.50 | Shop at ECS Tuning | ||||
| 13 | Shaft seal with lock ring | 100X50X10 | 2 | 33107505605 | $20.09 | Shop at ECS Tuning | ||||
| 14 | Lock Ring | D=26,7 | 2 | 33131213997 | $0.29 | Shop at ECS Tuning | ||||
| 15 | Stick-on label | DE, EN | 1 | 01399791197 | $4.25 | Shop at ECS Tuning | ||||
| 16 | BMW synthetic OSP | 1L | X | 07/2011 | 83222365987 | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
