Rear stabilizer bar/Dynamic Drive for BMW 5 Series E61 LCI 535d (2010)

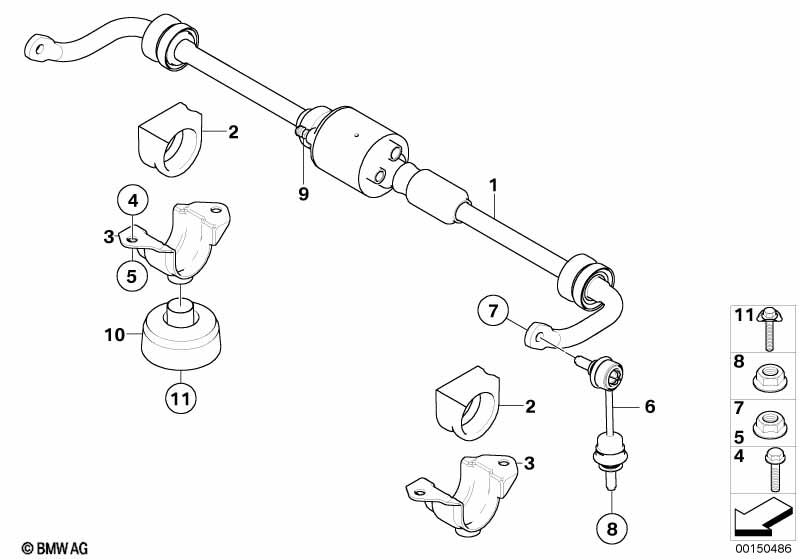

This Rear stabilizer bar/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Dynamic Drive |
S229A=Yes |
||||||||
| 01 | Active stabilizer bar | 1 | 37126780012 | $1424.02 | Shop at ECS Tuning | |||||
| 02 | Stabilizer rubber mounting | 2 | 37126761022 | $5.50 | Shop at ECS Tuning | |||||
| 03 | Bracket for left stabilizer bar | 1 | 37126760733 | $9.20 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket for right stabilizer bar | 1 | 37126760734 | $9.20 | Shop at ECS Tuning | |||||
| For vehicles with Sport automatic transmission or Automatic transmission |
S2TBA=Yes S205A=Yes |
|||||||||
| 03 | Bracket for right stabilizer bar | 1 | 37126774468 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt | M8X30-Z1-10.9 | 4 | 07119904137 | $0.89 | Shop at ECS Tuning | ||||
| 05 | Self-locking collar nut | M8-8 ZNS3 | 4 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Stabilizer link | 2 | 33506781537 | $46.80 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| 09 | Ventilation valve | M10X1 | 1 | 34116768018 | $6.60 | Shop at ECS Tuning | ||||
| For vehicles with Sport automatic transmission or Automatic transmission |
S2TBA=Yes S205A=Yes |
|||||||||
| 10 | Vibration absorber | 1 | 33306772237 | Shop at ECS Tuning | ||||||
| 11 | Securing bolt | M12X1,5X70-10.9 | 1 | 06/2010 | 33326760093 | $3.48 | ENDED | Shop at ECS Tuning | ||
