Final drive, gasket set for BMW 7 Series F01 740d (2012)

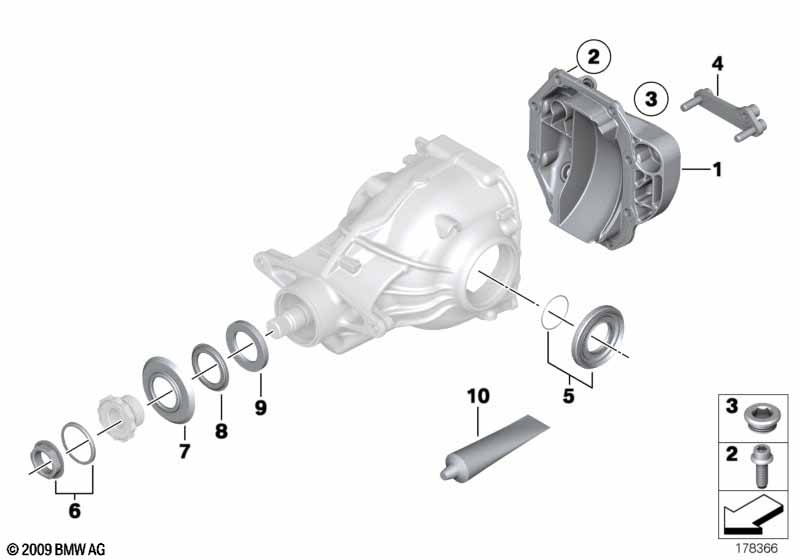

This Final drive, gasket set technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, rear | 225AL | 1 | 33117573816 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 02 | Flanged cap screw | M12X35-10.9ZNNI | 8 | 09/2009 | 33118650755 | Shop at ECS Tuning | ||||
| 03 | Screw plug with O-ring | M22X1,5-ZNS3 | 1 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| 05 | Sealing kit rear axle differential | TYP 215/225 | 2 | 33108860348 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 06 | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 07 | Dustcover plate | 1 | 33137600693 | Shop at ECS Tuning | ||||||
| Note Repair Manual | ||||||||||
| 08 | dustcover plate, small | 1 | 33121214064 | $0.84 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 09 | Shaft seal | 50X78X10 AW 215 | 1 | 33107609536 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 10 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
