Drive flange suspension/gasket ring for BMW 3 Series E30 325e (1987)
This Drive flange suspension/gasket ring technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Drive flange and nut must not be replaced. |
|||||||||
| 02 | Dustcover plate | 81MM | 1 | 33121200284 | $2.38 | Shop at ECS Tuning | ||||
| 03 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||

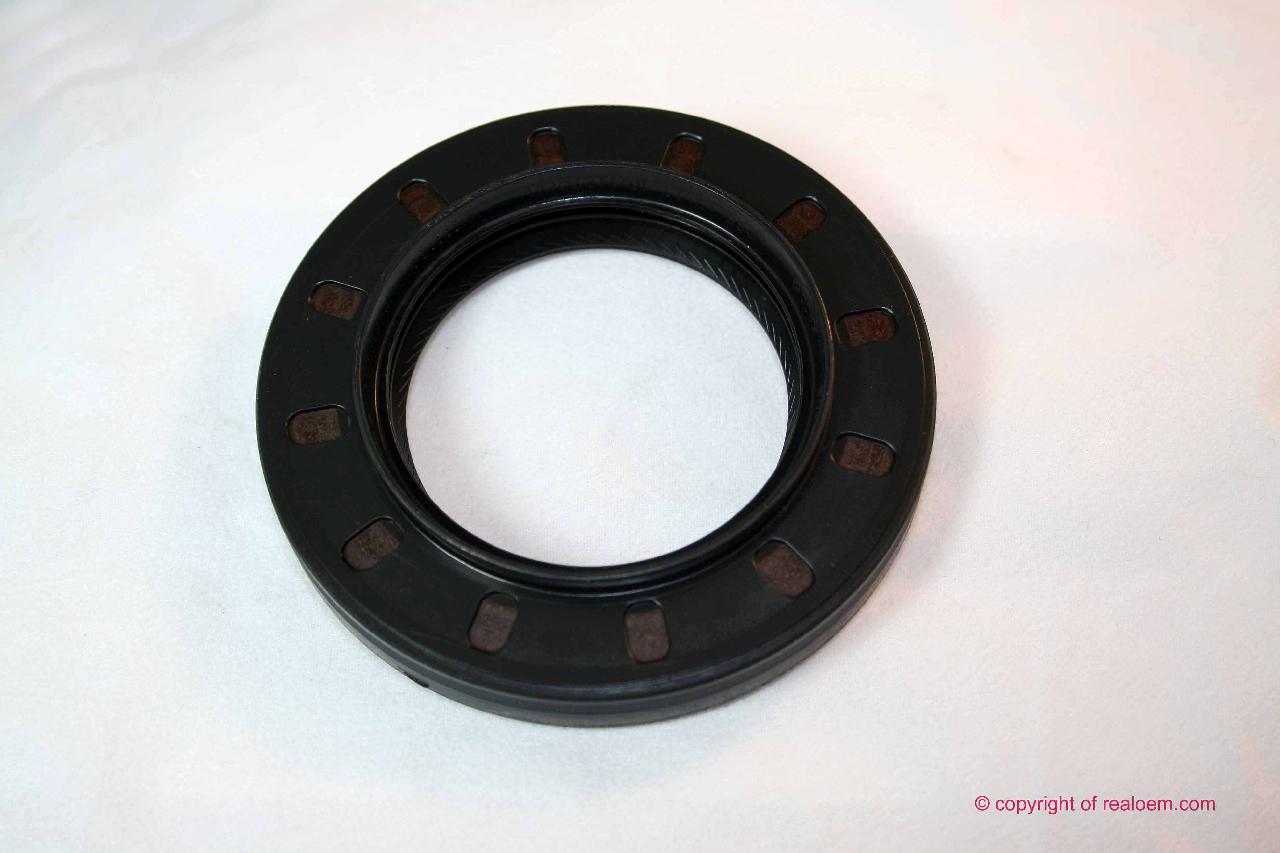

| 05 | Shaft seal | 45X75X10 | 1 | 33101214099 | $17.42 | ENDED | Shop at ECS Tuning | |||
| 06 | Tapered roller bearing | 31,7X73,0X29,3 | 1 | 33121203615 | $73.23 | ENDED | Shop at ECS Tuning | |||
| 07 | Tapered roller bearing | 36,5X76,2X29,3 | 1 | 33121203616 | $73.23 | ENDED | Shop at ECS Tuning | |||
| 08 | Clamping bush | 1 | 33121744368 | $9.14 | Shop at ECS Tuning | |||||
| 09 | Spacer rings set | 3,255MM-3,435MM | X | 33129065179 | $36.42 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
