Levell.device, air spring and ctrl unit for BMW 5 Series F11 LCI 530dX (2015)

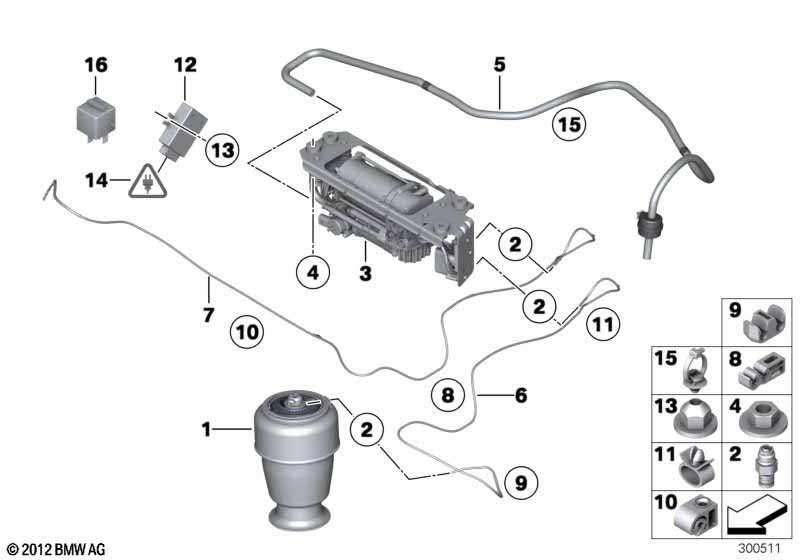

This Levell.device, air spring and ctrl unit technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 LCI 530dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electronic Damper Control (EDC) or Adaptive suspension Observe PuMA Measure 52125287! |
S223A=Yes S223A=Yes |
|||||||||
| 01 | Pneumatic spring, rear | 2 | 37106784381 | Shop at ECS Tuning | ||||||
| Important: Never lower vehicle with air discharged from air-suspension bellows! Note Repair Manual |
||||||||||
| For vehicles with Electronic Damper Control (EDC) and Adaptive suspension Observe PuMA Measure 52125287! |
S223A=No S223A=No |
|||||||||
| 01 | Pneumatic spring, rear | 2 | 37106784379 | Shop at ECS Tuning | ||||||
| Important: Never lower vehicle with air discharged from air-suspension bellows! Note Repair Manual |
||||||||||
| 02 | Screwed connection | D=4MM | 4 | 37221092403 | $3.00 | Shop at ECS Tuning | ||||
| 03 | Air supply device | 1 | 37206875176 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 04 | Hex nut | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Vent tubing | 1 | 12/2015 | 37206850595 | ENDED | Shop at ECS Tuning | ||||
| 05 | Vent tubing | 1 | 37206874510 | Shop at ECS Tuning | ||||||
| 06 | Air intake tube left | ROT | 1 | 37206793277 | Shop at ECS Tuning | |||||
| 07 | Air intake tube right | BLAU | 1 | 37206793278 | Shop at ECS Tuning | |||||
| 08 | Wire clip, dual | 2 | 34306784201 | $1.63 | Shop at ECS Tuning | |||||
| 09 | Spacer holder | 2 FACH | 1 | 07130519991 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Brake pipe bracket | 3 | 34326855500 | Shop at ECS Tuning | ||||||
| 11 | Tubing support | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 12 | Control unit, air suspension | 1 | 37146860386 | Shop at ECS Tuning | ||||||
| 13 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Universal socket housing uncoded | 26 POL. | 1 | 61136913626 | $1.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| 15 | Cable strap with bracket | Ø=7,9 / L=150 | 1 | 61138375988 | $0.37 | Shop at ECS Tuning | ||||
| 16 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
