Drive Shaft for BMW R 68 -54 R68 (1954)

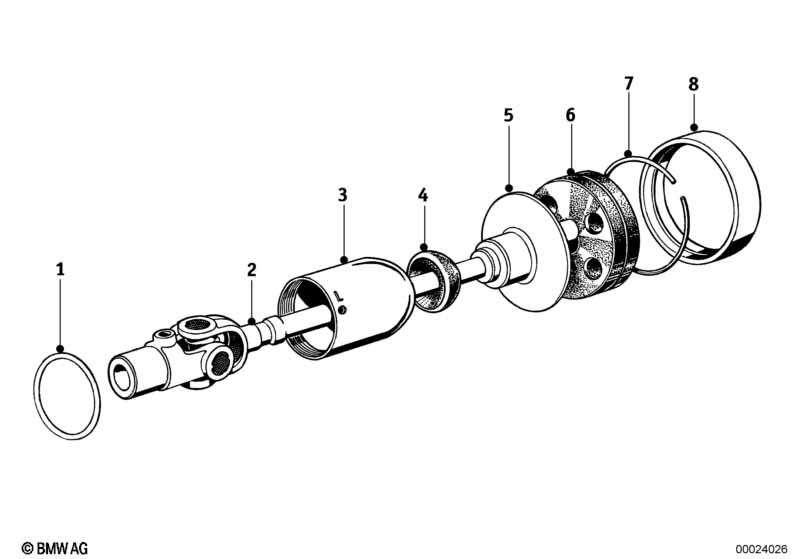

This Drive Shaft technical drawing provides a detailed breakdown of the assembly for the R 68 -54 R68. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1954.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket ring | 1 | 33110010514 | $8.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock housing aluminum matt | R51-R68 | 1 | 26113038270 | $81.47 | +core | Shop at ECS Tuning | |||
| 04 | Protection ring | GUMMI WEIß | 1 | 33113038170 | $9.86 | Shop at ECS Tuning | ||||
| 06 | Hardyscheibe | 1 | 26110029246 | $30.20 | Shop at ECS Tuning | |||||
| 07 | Sprengring Hardyscheibe | 1 | 33123038105 | $7.06 | Shop at ECS Tuning | |||||
| 08 | Sleeve | 1 | 33213038183 | $33.51 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R 68 -54 R68 Drive Shaft?
- This technical diagram illustrates the Drive Shaft within the Rear axle, rear-wheel drive, suspension group for the R 68 -54 R68 produced during 1954. It provides a detailed exploded view of the components, identifying key parts such as the Gasket ring (Part #33110010514).
- Which models use the hardware listed in this Drive Shaft?
- The hardware and components featured in the Drive Shaft are specific to the R 68 -54 R68 produced during 1954. These technical specifications ensure that parts like the Gasket ring (33110010514) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drive Shaft assembly?
- Each item in the Drive Shaft corresponds to the numbered list below the illustration. For the R 68 -54 R68, you can identify the Gasket ring by locating its position on the schematic, which then links to the official BMW part number 33110010514 for the Rear axle, rear-wheel drive, suspension section.
