Rear differential adapter / gaskets for BMW 4 Series F82 M4 M4 (2017)

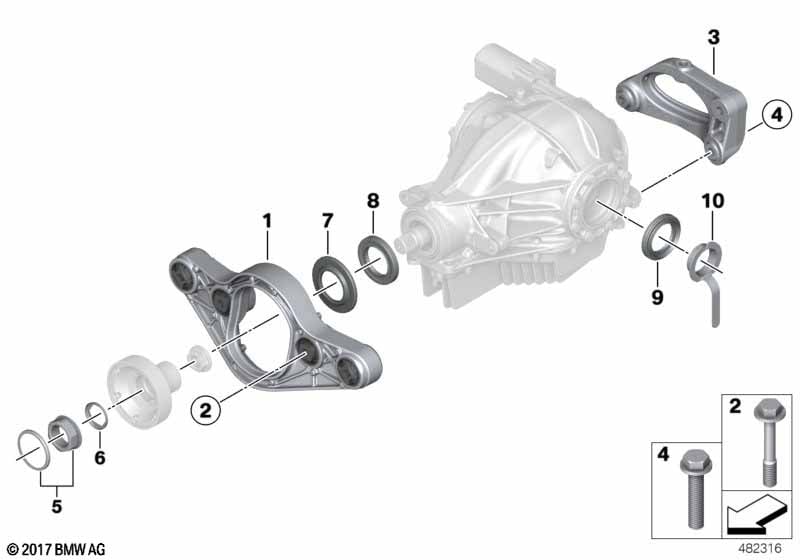

This Rear differential adapter / gaskets technical drawing provides a detailed breakdown of the assembly for the 4 Series F82 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Adapter, front | 1 | 33172284774 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M12X1,5X80 ZNS3 | 2 | 33176760337 | $1.81 | Shop at ECS Tuning | ||||
| 03 | Adapter, rear | 1 | 33172284775 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M12X1.5X60-10.9 | 3 | 31126760203 | $2.47 | Shop at ECS Tuning | ||||
| 05 | Repair kit recessed nut blue | M39X1,5X20 | 1 | 07/2016 | 33127607158 | Shop at ECS Tuning | ||||
| 07 | Dustcover plate | 1 | 33137600693 | Shop at ECS Tuning | ||||||
| 08 | Shaft seal | 50X80X9 | 1 | 33121213949 | $40.15 | Shop at ECS Tuning | ||||
| 09 | Shaft seal | 50X76X10 | 2 | 33137596788 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Assembly ring | 1 | 33208090872 | Shop at ECS Tuning | ||||||
| Note Repair Manual | ||||||||||
| 10 | Assembly ring | 1 | 33208090872 | Shop at ECS Tuning | ||||||
| Note Repair Manual | ||||||||||
