Rear axle different.single parts - 205 for BMW 7 Series G12 740Li (2019)

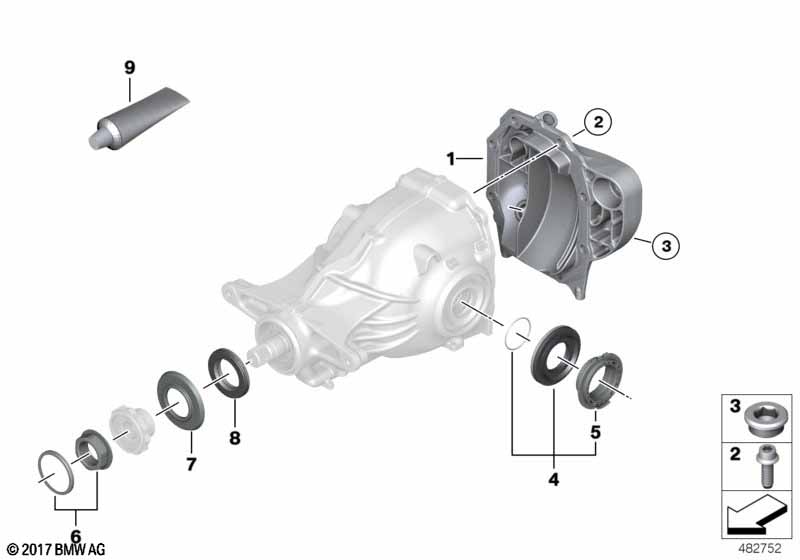

This Rear axle different.single parts - 205 technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, rear | 205AL | 1 | 33118638081 | Shop at ECS Tuning | |||||
| 02 | Flanged cap screw | M10X25-10.9ZNNI | 8 | 33118650753 | Shop at ECS Tuning | |||||
| 03 | Screw plug with O-ring | M22X1,5-ZNS3 | 1 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 04 | Gasket set differential | TYP 188 / 205 | 2 | 02/2019 | 33107564416 | $79.70 | ENDED | Shop at ECS Tuning | ||
| 04 | Sealing kit rear axle differential | TYP 205 | 2 | 33108860346 | Shop at ECS Tuning | |||||
| 05 | Assembly ring | 1 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 06 | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| 07 | dustcover plate, small | 1 | 33121213903 | $1.30 | Shop at ECS Tuning | |||||
| 08 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| 09 | Loctite 5970 liquid sealant | 50ML | X | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
