Rear axle carrier for BMW 3 Series F30 LCI 330e (2018)

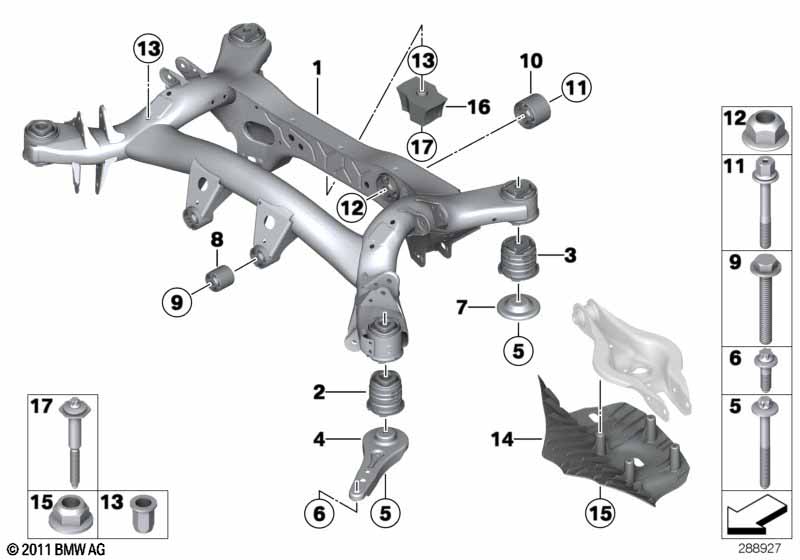

This Rear axle carrier technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33316792507 | Shop at ECS Tuning | ||||||
| 02 | RUBBER MOUNTING front | 2 | 33316792509 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | RUBBER MOUNTING rear | 2 | 33316792512 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 04 | Push rod | 2 | 33326792554 | Shop at ECS Tuning | ||||||
| 05 | Torx screw with collar | M12X1,5X110 | 4 | 33306793892 | Shop at ECS Tuning | |||||
| 06 | Torx screw with collar | M10X30-PC-10.9 | 4 | 33326796225 | Shop at ECS Tuning | |||||
| 07 | Stopper, rear | 2 | 08/2024 | 33316794866 | Shop at ECS Tuning | |||||
| 07 | Thrust washer, rear | 2 | 33308858483 | NoS | Shop at ECS Tuning | |||||
| 08 | RUBBER MOUNTING front | 2 | 33316792513 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M12X1,5X100 | 2 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 10 | RUBBER MOUNTING rear | 1 | 33316880637 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 1 | 83192405829 | Shop at ECS Tuning | |||||
| 11 | Nut | M14X1,5X110 | 1 | 33176799183 | Shop at ECS Tuning | |||||
| 12 | Self-locking collar nut | M14X1,5-10 ZNS3 | 1 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 13 | Blind rivet nut, flat headed | M8 | 10 | 41132291403 | $1.53 | Shop at ECS Tuning | ||||
| Mounts Stabilizer Vibration absorber Exhaust system |
||||||||||
| 14 | Covering left | 1 | 33326796137 | Shop at ECS Tuning | ||||||
| 14 | Covering right | 1 | 33326796138 | Shop at ECS Tuning | ||||||
| 15 | Hex nut | M6-8-ZNS3 | 8 | 07119902751 | $0.56 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 LCI 330e Rear axle carrier?
- This technical diagram illustrates the Rear axle carrier within the Rear Axle group for the 3 Series F30 LCI 330e produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Rear axle carrier (Part #33316792507).
- Which models use the hardware listed in this Rear axle carrier?
- The hardware and components featured in the Rear axle carrier are specific to the 3 Series F30 LCI 330e produced during 2018. These technical specifications ensure that parts like the Rear axle carrier (33316792507) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear axle carrier assembly?
- Each item in the Rear axle carrier corresponds to the numbered list below the illustration. For the 3 Series F30 LCI 330e, you can identify the Rear axle carrier by locating its position on the schematic, which then links to the official BMW part number 33316792507 for the Rear Axle section.
