Headlight vertical aim control sensor for BMW 3 Series G20 Sedan 330e (2020)

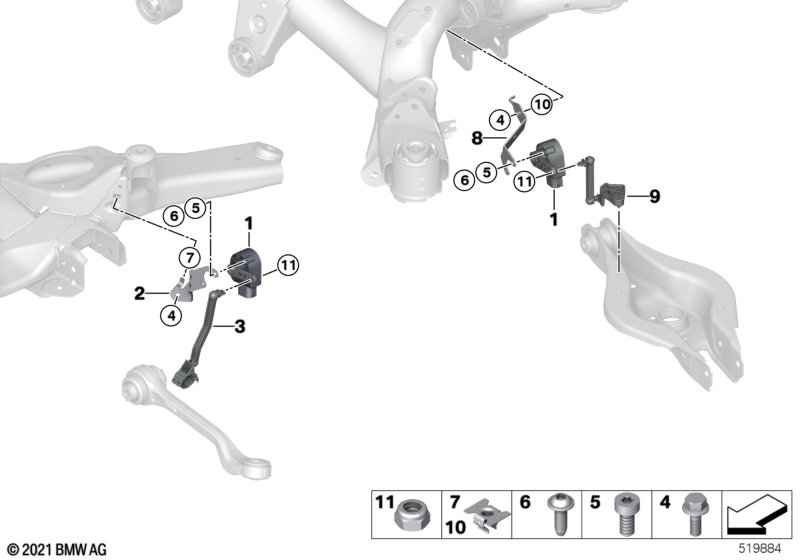

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Level sensor | 2 | 01/2021 | 37146870000 | Shop at ECS Tuning | |||||
| 02 | Holder for ride height sensor front left | RWD | 1 | 37146878573 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Country control for Brazil 00464 and Country-specific equipment Russia 10323 and Country-specific equipment Taiwan 04825 |
S1CBA=No S8LBA=No S8LRA=No S8LTA=No |
|||||||||
| 02 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 03 | Jointed rod front | RWD | 1 | 01/2021 | 37148851838 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
| 05 | ISA screw | M5X10 | 4 | 01/2021 | 07129904491 | Shop at ECS Tuning | ||||
| 06 | Oval head screw | 4 | 07141543905 | Shop at ECS Tuning | ||||||
| 07 | Prestol-cage | M6 ZNS3 | 1 | 37146850307 | Shop at ECS Tuning | |||||
| 08 | Bracket for height sensor, rear | 1 | 37146888955 | Shop at ECS Tuning | ||||||
| 09 | Connecting rod rear | 1 | 37148851844 | Shop at ECS Tuning | ||||||
| 10 | Prestol-cage | M6 ZNS3 | 1 | 37146850307 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
