Stabilizer, rear for BMW 7 Series G11 LCI 730d (2022)

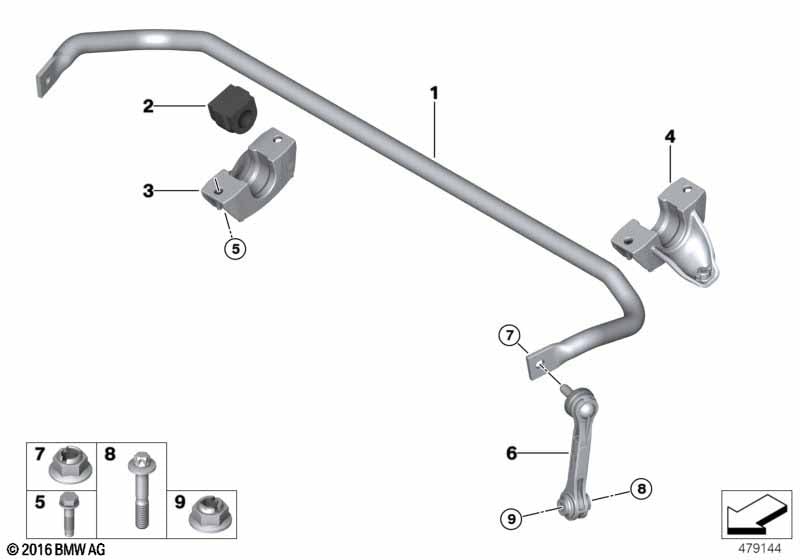

This Stabilizer, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, rear axle | 1 | 33506861458 | Shop at ECS Tuning | ||||||
| 02 | Stabilizer rubber mounting | 2 | 33506861466 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Bracket for right stabilizer bar | 1 | 33556861478 | Shop at ECS Tuning | ||||||
| 04 | Stabilizer support | 1 | 33556876180 | Shop at ECS Tuning | ||||||
| 05 | Screw self-tapping | M10X40-10.9 | 4 | 33556776944 | Shop at ECS Tuning | |||||
| 06 | Rear swing support | 2 | 33506869096 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M12X1,5-10-ZNS3 | 2 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| -- | Hexagon nut with collar | M10-10 ZNS3 | 2 | 33556790913 | Shop at ECS Tuning | |||||
| -- | ASA-Bolt | M10X55 | 2 | 31106863105 | Shop at ECS Tuning | |||||
| 07 | Hex nut wiht flange | M12X1,5-10-ZNS3 | 2 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| 08 | ASA-Bolt | M10X55 | 2 | 31106863105 | Shop at ECS Tuning | |||||
| 09 | Hexagon nut with collar | M10-10 ZNS3 | 2 | 33556790913 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G11 LCI 730d Stabilizer, rear?
- This technical diagram illustrates the Stabilizer, rear within the Rear Axle group for the 7 Series G11 LCI 730d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Stabilizer, rear axle (Part #33506861458).
- Which models use the hardware listed in this Stabilizer, rear?
- The hardware and components featured in the Stabilizer, rear are specific to the 7 Series G11 LCI 730d produced during 2022. These technical specifications ensure that parts like the Stabilizer, rear axle (33506861458) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer, rear assembly?
- Each item in the Stabilizer, rear corresponds to the numbered list below the illustration. For the 7 Series G11 LCI 730d, you can identify the Stabilizer, rear axle by locating its position on the schematic, which then links to the official BMW part number 33506861458 for the Rear Axle section.
