Rear axle carrier for BMW 2 Series G42 220d (2025)

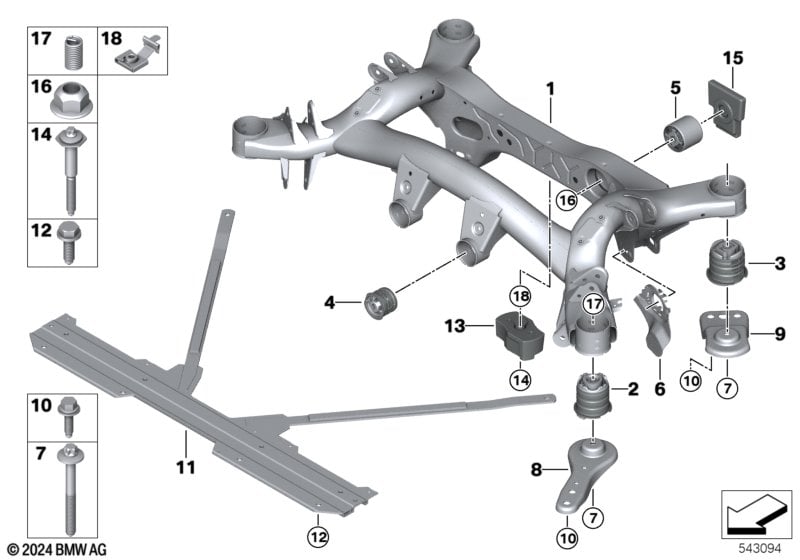

This Rear axle carrier technical drawing provides a detailed breakdown of the assembly for the 2 Series G42 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | ALU | 1 | 33318837918 | Shop at ECS Tuning | |||||
| 02 | RUBBER MOUNTING front | 2 | 33318838487 | Shop at ECS Tuning | ||||||
| 03 | RUBBER MOUNTING rear | 2 | 33316868538 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 04 | RUBBER MOUNTING front | 2 | 33316877260 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 05 | Hydro mount rear | 1 | 33316877263 | Shop at ECS Tuning | ||||||
| 06 | Stone-chip guard left rear | 1 | 33306888058 | Shop at ECS Tuning | ||||||
| 06 | Stone-chip guard right rear | 1 | 33306888060 | Shop at ECS Tuning | ||||||
| 07 | Torx screw with collar | M12X1,5X110 | 4 | 33306793892 | Shop at ECS Tuning | |||||
| 08 | Push rod | 2 | 33306876802 | Shop at ECS Tuning | ||||||
| 09 | Radius rod, rear left | 1 | 33306893403 | Shop at ECS Tuning | ||||||
| 09 | Radius rod, rear right | 1 | 33306893404 | Shop at ECS Tuning | ||||||
| 10 | Multi-purpose bolt ASA | M10X35 ZNS3 | 8 | 07146884435 | Shop at ECS Tuning | |||||
| 11 | Y-brace | 1 | 33306894831 | Shop at ECS Tuning | ||||||
| 12 | Combination Allen bolt | 10 | 07149304766 | Shop at ECS Tuning | ||||||
| 17 | Threaded plug | M12X1,5X24-A2 | 4 | 07129907891 | Shop at ECS Tuning | |||||
