Rear-axle-drive for BMW 4 Series F36 Gran Coupé LCI 430dX (2020)

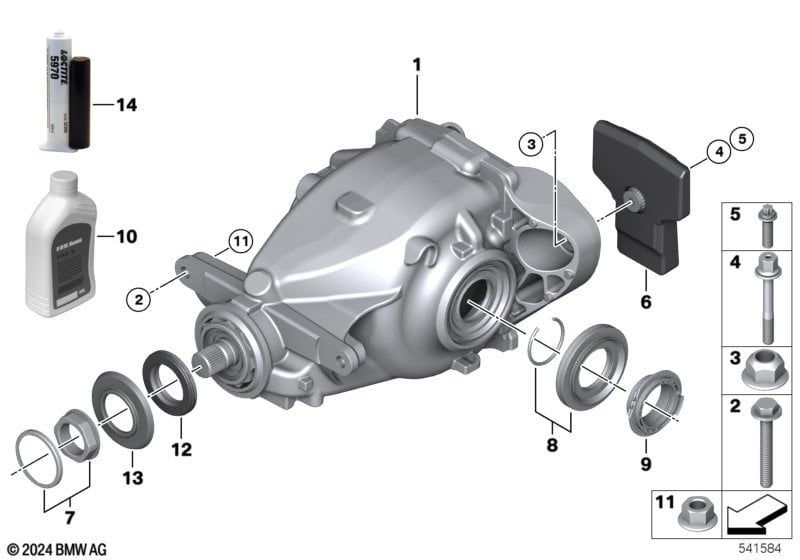

This Rear-axle-drive technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé LCI 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear-axle-drive | 215 LW I=2,56 | 1 | 33107544874 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M12X1,5X100 | 2 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 03 | Self-locking collar nut | M14X1,5-10 ZNS3 | 1 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 04 | Nut | M14X1,5X110 | 1 | 33176799183 | Shop at ECS Tuning | |||||
| 05 | Star-socket screw | BM8X30-U1-10.9- | 1 | 07119908584 | Shop at ECS Tuning | |||||
| 06 | Vibration absorber | 140HZ | 1 | 33316798889 | Shop at ECS Tuning | |||||
| 07 | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| 08 | Sealing kit rear axle differential | TYP 215/225 | 2 | 33108860348 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Assembly ring | 2 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 09 | Assembly ring | 2 | 02/2023 | 31537502681 | $9.98 | Shop at ECS Tuning | ||||
| 09 | Assembly ring | 2 | 31538844384 | Shop at ECS Tuning | ||||||
| 10 | Hypoid axle oil G1 | 0,5L | X | 83222295532 | Shop at ECS Tuning | |||||
| 11 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Shaft seal | 50X78X10 AW 215 | 1 | 33107609536 | Shop at ECS Tuning | |||||
| 13 | dustcover plate, large | 1 | 33127518511 | $2.11 | Shop at ECS Tuning | |||||
