Rear axle carrier for BMW iX3 G08 BEV iX3 (2021)

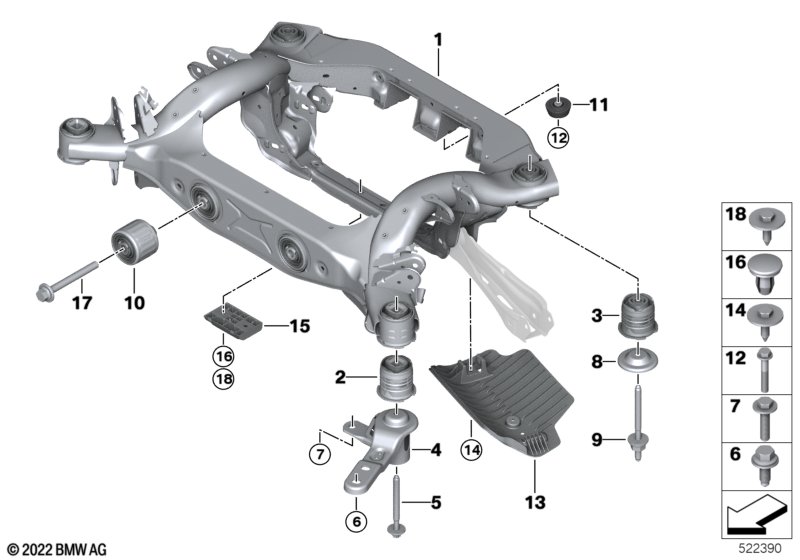

This Rear axle carrier technical drawing provides a detailed breakdown of the assembly for the iX3 G08 BEV iX3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Rear axle carrier | 1 | 33306891956 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Rear axle carrier | 1 | 33306891956 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 02 | RUBBER MOUNTING front | 2 | 33306887826 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 02 | RUBBER MOUNTING front | 2 | 33306887826 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 03 | Rubber mounting rear | 2 | 33306887828 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 03 | Rubber mounting rear | 2 | 33306887828 | Shop at ECS Tuning | ||||||
| 04 | Push rod left | 1 | 33306888095 | Shop at ECS Tuning | ||||||
| 04 | Push rod right | 1 | 33306888096 | Shop at ECS Tuning | ||||||
| 05 | Torx-bolt with washer | M12X127-10.9 | 2 | 33326760340 | $3.60 | Shop at ECS Tuning | ||||
| 06 | Multi-purpose bolt ASA | M12X1,5X29 10,9 | 4 | 07146878392 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M10X50 10.9 | 2 | 07119909741 | Shop at ECS Tuning | |||||
| 08 | Stopper, rear | 2 | 08/2024 | 33316794866 | Shop at ECS Tuning | |||||
| 08 | Thrust washer, rear | 2 | 33308858483 | NoS | Shop at ECS Tuning | |||||
| 09 | Threaded stud | M12X1.5X121 | 2 | 33326891271 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 10 | RUBBER MOUNTING front | 2 | 33308483303 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 10 | RUBBER MOUNTING front | 2 | 33308483303 | Shop at ECS Tuning | ||||||
| 11 | Vibration absorber | 300G | 1 | 33176894067 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M8X50 10.9 | 1 | 07119909702 | Shop at ECS Tuning | |||||
| 13 | Aero cover panel, rear left | 1 | 33306889065 | Shop at ECS Tuning | ||||||
| 13 | Aero cover panel, rear right | 1 | 33306889066 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt | TS5X20SW10 D=22 | 4 | 07149481168 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 15 | Jack fixture | 1 | 33306891678 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 15 | Jack fixture | 1 | 33306891678 | Shop at ECS Tuning | ||||||
| 16 | Expanding rivet | 2 | 07147136172 | $0.38 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M14X1.5X133 | 2 | 07148833456 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | TS5X20 SW8 D=22 | 2 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
