Headlight vertical aim control sensor for BMW 4 Series G23 Convertible LCI M440iX (2025)

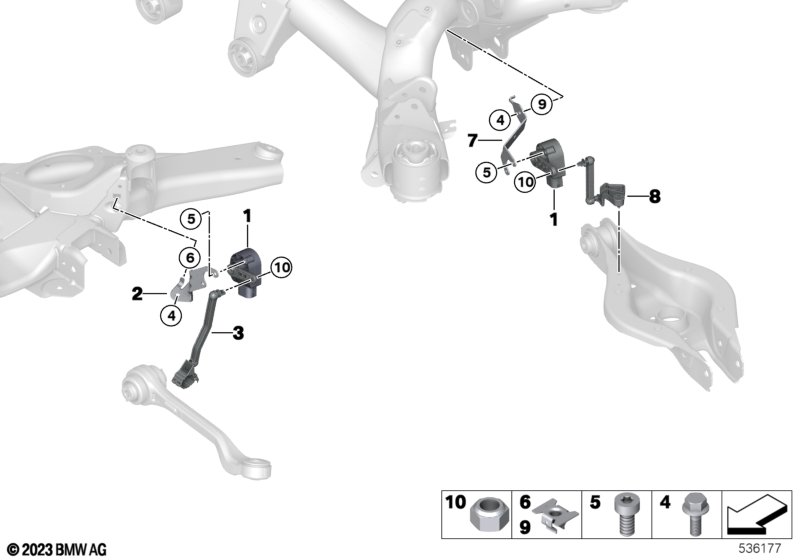

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI M440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Level sensor | 2 | 01/2021 | 37146895466 | Shop at ECS Tuning | |||||
| 02 | Holder for ride height sensor front left | AWD | 1 | 37146878575 | Shop at ECS Tuning | |||||
| 03 | Jointed rod front | AWD | 1 | 37148851843 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Oval head screw | 4 | 01/2021 | 07141543905 | Shop at ECS Tuning | |||||
| 06 | Prestol-cage | M6 ZNS3 | 1 | 37146850307 | Shop at ECS Tuning | |||||
| 07 | Bracket for height sensor, rear | 1 | 37146888955 | Shop at ECS Tuning | ||||||
| 08 | Connecting rod rear | 1 | 37148851844 | Shop at ECS Tuning | ||||||
| 09 | Prestol-cage | M6 ZNS3 | 1 | 37146850307 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI M440iX Headlight vertical aim control sensor?
- This technical diagram illustrates the Headlight vertical aim control sensor within the Rear Axle group for the 4 Series G23 Convertible LCI M440iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Level sensor (Part #37146895466).
- Which models use the hardware listed in this Headlight vertical aim control sensor?
- The hardware and components featured in the Headlight vertical aim control sensor are specific to the 4 Series G23 Convertible LCI M440iX produced during 2025. These technical specifications ensure that parts like the Level sensor (37146895466) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight vertical aim control sensor assembly?
- Each item in the Headlight vertical aim control sensor corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI M440iX, you can identify the Level sensor by locating its position on the schematic, which then links to the official BMW part number 37146895466 for the Rear Axle section.
