Rr axle support, wheel susp.,whl bearing for BMW MINI F55 LCI One (2024)

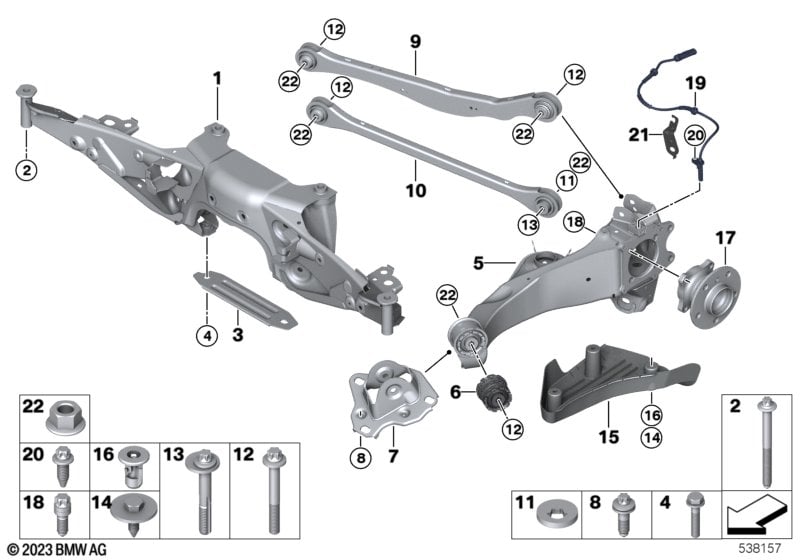

This Rr axle support, wheel susp.,whl bearing technical drawing provides a detailed breakdown of the assembly for the MINI F55 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33306851559 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 4 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| -- | ASA bolt with flange | M12X1,5X75-10.9 | 4 | 33326858053 | Shop at ECS Tuning | |||||
| -- | ASA-Bolt | M12X1.5X125 | 4 | 07148877482 | Shop at ECS Tuning | |||||
| -- | Screw | M12X1,5X48 | 2 | 07119908596 | Shop at ECS Tuning | |||||
| 02 | Screw self-tapping | M12X1,5X125 | 4 | 07/2024 | 33306857401 | Shop at ECS Tuning | ||||
| 02 | ASA-Bolt | M12X1.5X125 | 4 | 07148877482 | Shop at ECS Tuning | |||||
| 03 | Cross brace | 1 | 33316858415 | Shop at ECS Tuning | ||||||
| 04 | Screw | M12X1,5X48 | 2 | 07119908596 | Shop at ECS Tuning | |||||
| 05 | Trailing arm, left | 1 | 04/2024 | 33308842877 | Shop at ECS Tuning | |||||
| 05 | Trailing arm, left | 1 | 33308854115 | Shop at ECS Tuning | ||||||
| 05 | Trailing arm, right | 1 | 04/2024 | 33308842878 | Shop at ECS Tuning | |||||
| 05 | Trailing arm, right | 1 | 33308854116 | Shop at ECS Tuning | ||||||
| 06 | Rubber Mounting | 2 | 33326850395 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| -- | ASA bolt with flange | M12X1,5X75-10.9 | 2 | 33326858053 | Shop at ECS Tuning | |||||
| -- | Multi-purpose bolt ASA | M12X1,5X34 | 6 | 31106885162 | Shop at ECS Tuning | |||||
| 07 | Bracket, trailing arm left | 1 | 33326896991 | Shop at ECS Tuning | ||||||
| 07 | Bracket, trailing arm right | 1 | 33326896992 | Shop at ECS Tuning | ||||||
| 08 | Multi-purpose bolt ASA | M12X1,5X34 | 6 | 31106885162 | Shop at ECS Tuning | |||||
| 09 | Wishbone, top | 2 | 33306895885 | Shop at ECS Tuning | ||||||
| 10 | Wishbone, lower | 2 | 33326851569 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 4 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| -- | Eccentric flat washer | 2 | 33306786186 | $2.52 | Shop at ECS Tuning | |||||
| -- | ASA bolt with flange | M12X1,5X75-10.9 | 2 | 33326858053 | Shop at ECS Tuning | |||||
| -- | Eccentric bolt | M12X1,5X75-10.9 | 2 | 33326858054 | Shop at ECS Tuning | |||||
| 11 | Eccentric flat washer | 2 | 33306786186 | $2.52 | Shop at ECS Tuning | |||||
| 12 | ASA bolt with flange | M12X1,5X75-10.9 | 8 | 33326858053 | Shop at ECS Tuning | |||||
| 13 | Eccentric bolt | M12X1,5X75-10.9 | 2 | 33326858054 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | TS5X17 SW8 D=22 | 6 | 07149126886 | Shop at ECS Tuning | |||||
| 15 | Covering left | 1 | 33326890189 | Shop at ECS Tuning | ||||||
| 15 | Covering right | 1 | 33326890190 | Shop at ECS Tuning | ||||||
| 16 | Expanding nut | L=18.4, DMAX=18 | 8 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Wheel hub with bearing | HIGH | 2 | 33406891924 | Shop at ECS Tuning | |||||
| 18 | ASA-Bolt | 8 | 31106860974 | Shop at ECS Tuning | ||||||
| 19 | Pulse generator, DSC rear | 2 | 34525A98F70 | Shop at ECS Tuning | ||||||
| 20 | Torx screw with collar | M6X16-10.9-ZNS3 | 2 | 12726858057 | Shop at ECS Tuning | |||||
| 21 | Bracket, brake hose, rear left | 1 | 34526865027 | Shop at ECS Tuning | ||||||
| 21 | Bracket, brake hose, rear right | 1 | 34526865028 | Shop at ECS Tuning | ||||||
| 22 | Self-locking collar nut | M12X1,5-10 ZNS3 | 10 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
