Rear stabilizer bar/Dynamic Drive for BMW 6 Series E63 650i (2007)

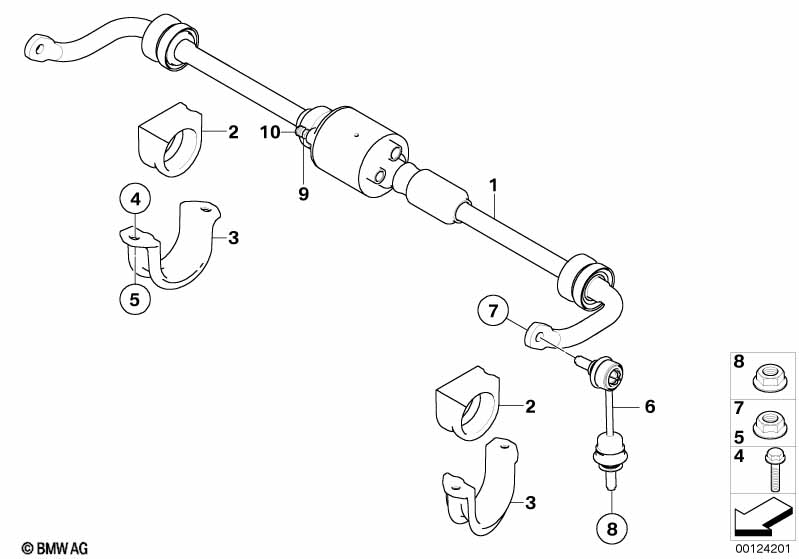

This Rear stabilizer bar/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Active stabilizer bar | 1 | 37126780012 | $1424.02 | Shop at ECS Tuning | |||||
| 02 | Stabilizer rubber mounting | 2 | 37126761022 | $5.50 | Shop at ECS Tuning | |||||
| 03 | Bracket for left stabilizer bar | 1 | 37126760733 | $9.20 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket for right stabilizer bar | 1 | 37126760734 | $9.20 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X30-Z1-10.9 | 4 | 07119904137 | $0.89 | Shop at ECS Tuning | ||||
| 05 | Self-locking collar nut | M8-8 ZNS3 | 4 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Stabilizer link | 2 | 33506781537 | $46.80 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| 09 | Ventilation valve | M10X1 | 1 | 34116768018 | $6.60 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 650i Rear stabilizer bar/Dynamic Drive?
- This technical diagram illustrates the Rear stabilizer bar/Dynamic Drive within the Rear Axle group for the 6 Series E63 650i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Active stabilizer bar (Part #37126780012).
- Which models use the hardware listed in this Rear stabilizer bar/Dynamic Drive?
- The hardware and components featured in the Rear stabilizer bar/Dynamic Drive are specific to the 6 Series E63 650i produced during 2007. These technical specifications ensure that parts like the Active stabilizer bar (37126780012) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear stabilizer bar/Dynamic Drive assembly?
- Each item in the Rear stabilizer bar/Dynamic Drive corresponds to the numbered list below the illustration. For the 6 Series E63 650i, you can identify the Active stabilizer bar by locating its position on the schematic, which then links to the official BMW part number 37126780012 for the Rear Axle section.
