Rear-axle-drive for BMW 7 Series G70 740d (2023)

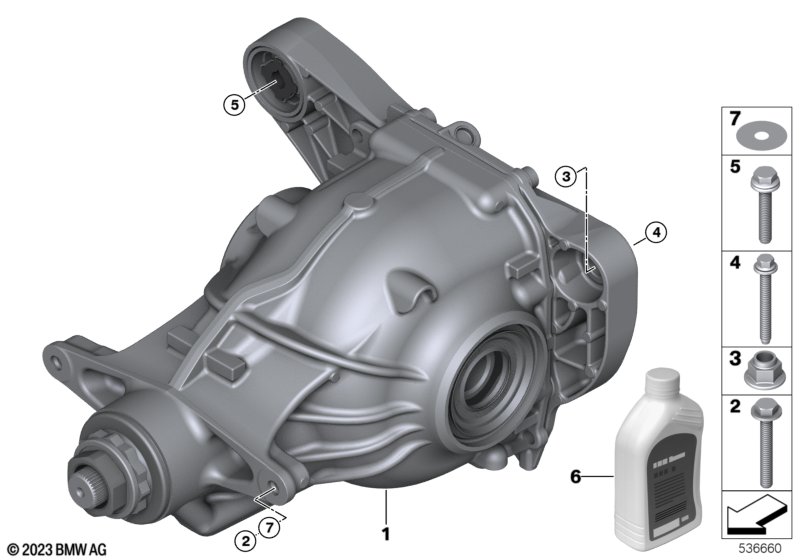

This Rear-axle-drive technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle differential 225AL | 225AL=2,65 | 1 | 33108839891 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M12X1,5X110 | 2 | 07119906460 | Shop at ECS Tuning | |||||
| 03 | Hexagon nut | M14X1.5-10 | 1 | 07148854416 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M14X1,5X133ZNS3 | 1 | 33176760336 | $8.88 | Shop at ECS Tuning | ||||
| 06 | Hypoid axle oil G5 | 0,5L | X | 83222471487 | Shop at ECS Tuning |
