Rear axle support/wheel suspension for BMW 7 Series G70 735i (2025)

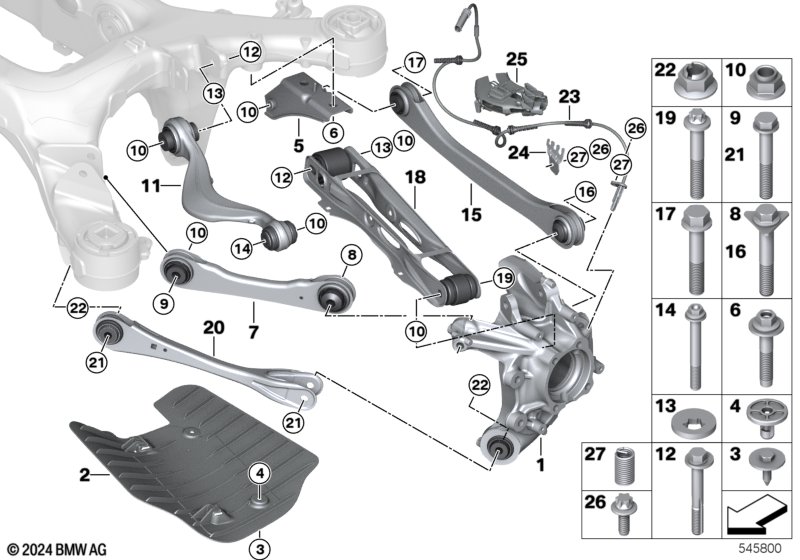

This Rear axle support/wheel suspension technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel carrier, rear left | 1 | 33306898349 | Shop at ECS Tuning | ||||||
| 01 | Wheel carrier, rear right | 1 | 33306898350 | Shop at ECS Tuning | ||||||
| 02 | Covering left | 1 | 33308835389 | Shop at ECS Tuning | ||||||
| 02 | Covering right | 1 | 33308835390 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | TS5X20 SW8 D=22 | 4 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | 4 | 31146856399 | Shop at ECS Tuning | ||||||
| For vehicles with Integral active steering |
S2VHA=No |
|||||||||
| 05 | Bracket left | 1 | 33318832027 | Shop at ECS Tuning | ||||||
| 05 | Bracket right | 1 | 33318832028 | Shop at ECS Tuning | ||||||
| 06 | Screw self-tapping | M14X1,5X75-10.9 | 4 | 31106850776 | Shop at ECS Tuning | |||||
| 07 | Guide rod, left | 1 | 33326898563 | Shop at ECS Tuning | ||||||
| 07 | Guide rod, right | 1 | 33326898564 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M16X1,5X100 | 2 | 33306861944 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M14X1,5X84 | 2 | 33306867271 | Shop at ECS Tuning | |||||
| 10 | Hexagon nut | M14X1.5-10 | 12 | 07148854416 | Shop at ECS Tuning | |||||
| 11 | Control arm with rubber bushing, left | 1 | 33326883339 | Shop at ECS Tuning | ||||||
| 11 | Control arm with rubber bushing, right | 1 | 33326883340 | Shop at ECS Tuning | ||||||
| 12 | Eccentric bolt | M14X1.5 | 4 | 33306874090 | Shop at ECS Tuning | |||||
| 13 | Crescent | 4 | 33306874239 | Shop at ECS Tuning | ||||||
| 14 | Multi-purpose bolt | 2 | 33306891268 | Shop at ECS Tuning | ||||||
| 15 | Toe link with rubber mount left | 1 | 33308860835 | Shop at ECS Tuning | ||||||
| 15 | Toe link with rubber mount right | 1 | 33308860836 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | M14X1,5X90 | 2 | 33306861943 | Shop at ECS Tuning | |||||
| 17 | Hexagon screw with flange | M12X1,5X67-10.9 | 2 | 07119906489 | $2.42 | Shop at ECS Tuning | ||||
| 18 | Camber control arm | 2 | 33328835607 | Shop at ECS Tuning | ||||||
| 19 | Star-socket screw | 14X1,5X90 ZNS3 | 2 | 07119907136 | Shop at ECS Tuning | |||||
| 20 | Trailing link with rubber mount | 2 | 33328852669 | Shop at ECS Tuning | ||||||
| 21 | Hex bolt | M12X1,5X80 10.9 | 4 | 07119906292 | Shop at ECS Tuning | |||||
| 22 | Hex nut wiht flange | M12X1,5-10-ZNS3 | 4 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| 24 | Bracket, wheelspeed sensor, left | 1 | 34526869997 | Shop at ECS Tuning | ||||||
| 24 | Bracket, wheelspeed sensor, right | 1 | 34526869998 | Shop at ECS Tuning | ||||||
| 25 | Bracket, wheelspeed sensor, left | 1 | 34526886993 | Shop at ECS Tuning | ||||||
| 25 | Bracket, wheelspeed sensor, right | 1 | 34526886994 | Shop at ECS Tuning | ||||||
| 26 | ASA screw, self-threading | M6X16 | 4 | 34509804151 | Shop at ECS Tuning | |||||
| 27 | Heli-Coil threaded insert | M6X12 | 4 | 33306786621 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 735i Rear axle support/wheel suspension?
- This technical diagram illustrates the Rear axle support/wheel suspension within the Rear Axle group for the 7 Series G70 735i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Wheel carrier, rear left (Part #33306898349).
- Which models use the hardware listed in this Rear axle support/wheel suspension?
- The hardware and components featured in the Rear axle support/wheel suspension are specific to the 7 Series G70 735i produced during 2025. These technical specifications ensure that parts like the Wheel carrier, rear left (33306898349) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear axle support/wheel suspension assembly?
- Each item in the Rear axle support/wheel suspension corresponds to the numbered list below the illustration. For the 7 Series G70 735i, you can identify the Wheel carrier, rear left by locating its position on the schematic, which then links to the official BMW part number 33306898349 for the Rear Axle section.
