Rear axle support/wheel suspension for BMW 5 Series G38 LCI 530Li (2023)

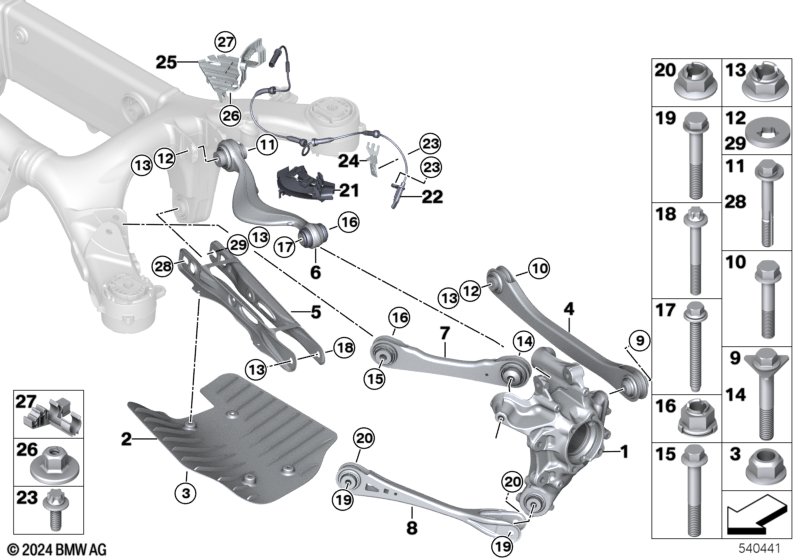

This Rear axle support/wheel suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series G38 LCI 530Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel carrier, rear left | 1 | 08/2025 | 33306890779 | Shop at ECS Tuning | |||||
| 01 | Wheel carrier, rear right | 1 | 08/2025 | 33306890780 | Shop at ECS Tuning | |||||
| 02 | Covering left | 1 | 33306876963 | Shop at ECS Tuning | ||||||
| 02 | Covering right | 1 | 33306876964 | Shop at ECS Tuning | ||||||
| 03 | Self-locking hex nut | M6 | 8 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 04 | Steering arm with rubber bushing, left | 1 | 33326883651 | Shop at ECS Tuning | ||||||
| 04 | Steering arm with rubber bushing, right | 1 | 33326883652 | Shop at ECS Tuning | ||||||
| 05 | Camber control arm | 2 | 33326866446 | Shop at ECS Tuning | ||||||
| 06 | Control arm with rubber bushing, left | 1 | 05/2024 | 33326887581 | ENDED | Shop at ECS Tuning | ||||
| 06 | Control arm with rubber bushing, left | 1 | 33326883339 | Shop at ECS Tuning | ||||||
| 06 | Control arm with rubber bushing, right | 1 | 05/2024 | 33326887582 | ENDED | Shop at ECS Tuning | ||||
| 06 | Control arm with rubber bushing, right | 1 | 33326883340 | Shop at ECS Tuning | ||||||
| 07 | Guiding suspens. link w rubber mount lft | 1 | 33306883645 | Shop at ECS Tuning | ||||||
| 07 | Guiding suspens. link w rubber mount rgh | 1 | 33306883646 | Shop at ECS Tuning | ||||||
| 08 | Trailing arm with rubber bushing | 2 | 33326883661 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Cage nut | 2 | 37146870371 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | M14X1,5X90 | 2 | 33306861943 | Shop at ECS Tuning | |||||
| 10 | Hexagon screw with flange | M12X1,5X67-10.9 | 2 | 07119906489 | $2.42 | Shop at ECS Tuning | ||||
| 11 | Eccentric bolt | M14X1.5 | 4 | 33306874090 | Shop at ECS Tuning | |||||
| 12 | Crescent | 4 | 33306874239 | Shop at ECS Tuning | ||||||
| 13 | Hexagon nut with collar | M14X1,5-10 ZNS3 | 6 | 31106890194 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M16X1,5X100 | 2 | 33306861944 | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M14X1,5X84 | 2 | 33306867271 | Shop at ECS Tuning | |||||
| 16 | Combination nut | M14X1,5-10ZNNIV | 2 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 17 | Multi-purpose bolt ASA | M14X1.5X115 | 2 | 33306890937 | Shop at ECS Tuning | |||||
| 18 | Torx-bolt with washer | M14X1,5X85 | 2 | 07119908024 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M12X1,5X80 10.9 | 4 | 07119906292 | Shop at ECS Tuning | |||||
| 20 | Hex nut wiht flange | M12X1,5-10-ZNS3 | 4 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| 21 | Bracket, wheelspeed sensor, left | 1 | 34526886993 | Shop at ECS Tuning | ||||||
| 21 | Bracket, wheelspeed sensor, right | 1 | 34526886994 | Shop at ECS Tuning | ||||||
| 22 | Wheelspeed sensor | 2 | 34526869992 | Shop at ECS Tuning | ||||||
| 23 | ASA screw, self-threading | M6X16 | 4 | 34509804151 | Shop at ECS Tuning | |||||
| 27 | Clip | 1 | 16127407367 | Shop at ECS Tuning | ||||||
| 28 | Eccentric bolt | M14X1,5X95-10.9 | 4 | 07146888626 | Shop at ECS Tuning | |||||
| 29 | Eccentric flat washer | 4 | 33306786187 | $1.14 | Shop at ECS Tuning | |||||
