Output shaft for BMW 5 Series G61 Touring 520d (2023)

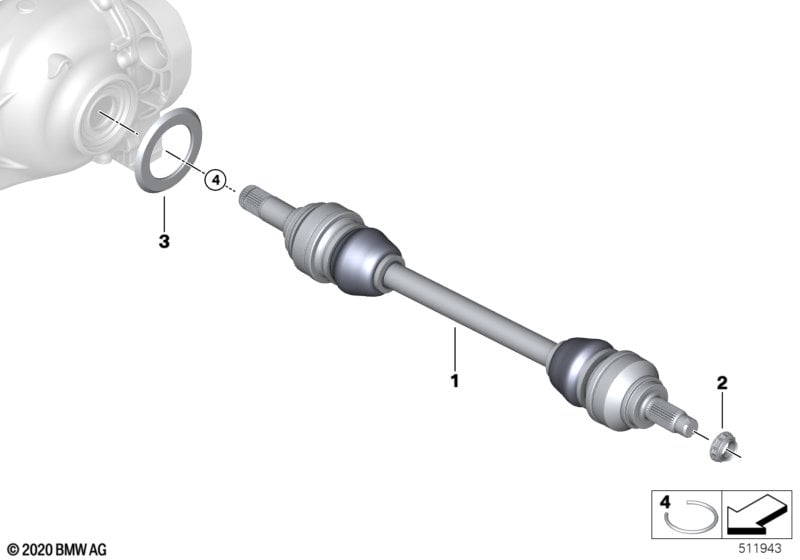

This Output shaft technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output shaft rear left | 1 | 33205A2AF23 | NoS | Shop at ECS Tuning | |||||
| 01 | Output shaft right rear | 1 | 33205A2AF24 | NoS | Shop at ECS Tuning | |||||
| 02 | Collar screw with spring | M16X1,5X66 | 2 | 31206866022 | Shop at ECS Tuning | |||||
| 03 | Dust guard ring, plastic | HAG188/190 | 2 | 33205A31900 | Shop at ECS Tuning | |||||
| 04 | Circlip | 2 | 33138860481 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 520d Output shaft?
- This technical diagram illustrates the Output shaft within the Rear Axle group for the 5 Series G61 Touring 520d produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Output shaft rear left (Part #33205A2AF23).
- Which models use the hardware listed in this Output shaft?
- The hardware and components featured in the Output shaft are specific to the 5 Series G61 Touring 520d produced during 2023. These technical specifications ensure that parts like the Output shaft rear left (33205A2AF23) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Output shaft assembly?
- Each item in the Output shaft corresponds to the numbered list below the illustration. For the 5 Series G61 Touring 520d, you can identify the Output shaft rear left by locating its position on the schematic, which then links to the official BMW part number 33205A2AF23 for the Rear Axle section.
