Headlight vertical aim control sensor for BMW 5 Series G60 Sedan 520i (2024)

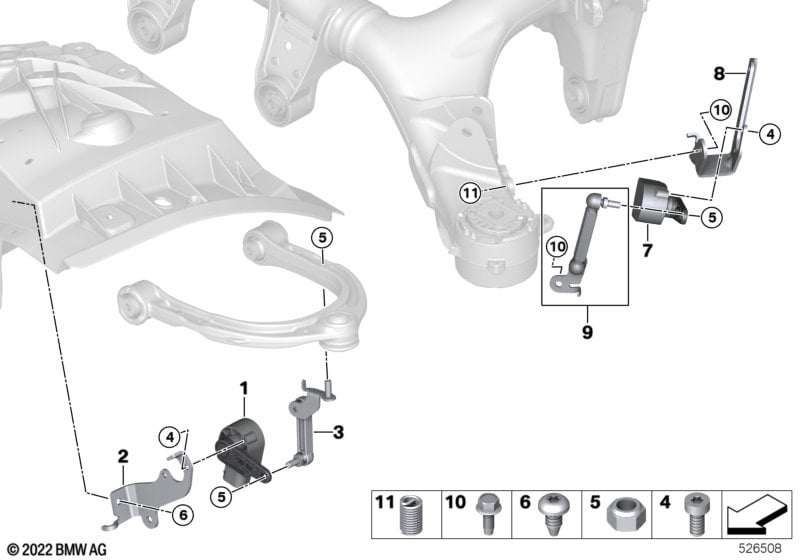

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Level sensor | 1 | 37146895466 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension, Professional |
S2VVA=Yes |
|||||||||
| 01 | Level sensor | 2 | 37146895466 | Shop at ECS Tuning | ||||||
| 02 | Left ride height sensor bracket | 1 | 37146870965 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension, Professional |
S2VVA=Yes |
|||||||||
| 02 | Right ride height sensor bracket | 1 | 37146870970 | Shop at ECS Tuning | ||||||
| 03 | Control rod left front | 1 | 37146898865 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension, Professional |
S2VVA=Yes |
|||||||||
| 03 | Control rod right front | 1 | 37146898866 | Shop at ECS Tuning | ||||||
| 04 | Oval head screw | 8 | 07141543905 | Shop at ECS Tuning | ||||||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive suspension, Professional |
S2VVA=Yes |
|||||||||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension, Professional |
S2VVA=Yes |
|||||||||
| 06 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 07 | Level sensor | 1 | 37146895466 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension, Professional |
S2VVA=Yes |
|||||||||
| 07 | Level sensor | 2 | 37146895466 | Shop at ECS Tuning | ||||||
| 08 | Left ride height sensor bracket | 1 | 37148833853 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension, Professional |
S2VVA=Yes |
|||||||||
| 08 | Right ride height sensor bracket | 1 | 37148833854 | Shop at ECS Tuning | ||||||
| 09 | Control rod, left | 1 | 37146898867 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive suspension, Professional |
S2VVA=Yes |
|||||||||
| 09 | Control rod, right | 1 | 37146898868 | Shop at ECS Tuning | ||||||
| 10 | Screw self-tapping | M6X16MM | 2 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 11 | Heli-Coil threaded insert | M6X12 | 2 | 33306786621 | Shop at ECS Tuning | |||||
