Rear axle support/wheel suspension for BMW 5 Series G60 Sedan 530e (2025)

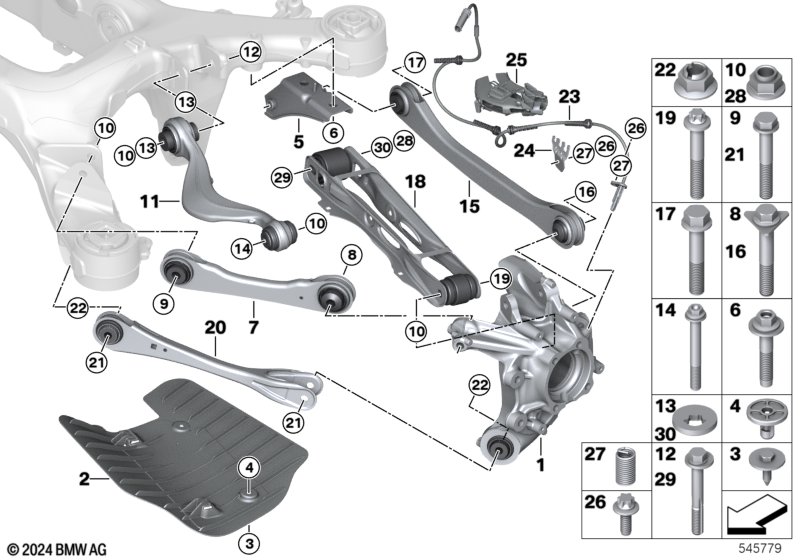

This Rear axle support/wheel suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel carrier rear left | 1 | 33306898361 | Shop at ECS Tuning | ||||||
| 01 | Wheel carrier right rear | 1 | 33306898362 | Shop at ECS Tuning | ||||||
| 02 | Covering left | 1 | 33308835389 | Shop at ECS Tuning | ||||||
| 02 | Covering right | 1 | 33308835390 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | TS5X20SW10 D=22 | 4 | 07149481168 | Shop at ECS Tuning | |||||
| 04 | Expanding nut | L= 19.9MM | 1 | 07147306224 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive suspension, Professional |
S2VVA=No |
|||||||||
| 05 | Bracket left | 1 | 33318832027 | Shop at ECS Tuning | ||||||
| 05 | Bracket right | 1 | 33318832028 | Shop at ECS Tuning | ||||||
| 06 | Screw self-tapping | M14X1,5X75-10.9 | 4 | 31106850776 | Shop at ECS Tuning | |||||
| 07 | Guide rod, left | 1 | 33326898563 | Shop at ECS Tuning | ||||||
| 07 | Guide rod, right | 1 | 33326898564 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M16X1,5X100 | 2 | 33306861944 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M14X1,5X84 | 2 | 33306867271 | Shop at ECS Tuning | |||||
| 10 | Hexagon nut | M14X1.5-10 | 8 | 07148854416 | Shop at ECS Tuning | |||||
| 11 | Control arm with rubber mount left | 1 | 33328833217 | Shop at ECS Tuning | ||||||
| 11 | Control arm with rubber mount right | 1 | 33328833218 | Shop at ECS Tuning | ||||||
| 12 | Eccentric bolt | M14X1.5 | 2 | 33306874090 | Shop at ECS Tuning | |||||
| 13 | Crescent | 2 | 33306874239 | Shop at ECS Tuning | ||||||
| 14 | Multi-purpose bolt | 2 | 33306891268 | Shop at ECS Tuning | ||||||
| 15 | Toe link with rubber mount left | 1 | 33308860835 | Shop at ECS Tuning | ||||||
| 15 | Toe link with rubber mount right | 1 | 33308860836 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | M14X1,5X90 | 2 | 33306861943 | Shop at ECS Tuning | |||||
| 17 | Hexagon screw with flange | M12X1,5X67-10.9 | 2 | 07119906489 | $2.42 | Shop at ECS Tuning | ||||
| 18 | Camber control arm | 2 | 33328835607 | Shop at ECS Tuning | ||||||
| 19 | Torx-bolt with washer | M14X1,5X85 | 2 | 07119908024 | Shop at ECS Tuning | |||||
| 20 | Trailing link with rubber mount | 2 | 33328852669 | Shop at ECS Tuning | ||||||
| 21 | Hex bolt | M12X1,5X80 10.9 | 4 | 07119906292 | Shop at ECS Tuning | |||||
| 22 | Hex nut wiht flange | M12X1,5-10-ZNS3 | 4 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| 23 | Wheel speed sensor | 2 | 34525A62683 | Shop at ECS Tuning | ||||||
| 24 | Bracket, wheelspeed sensor, left | 1 | 34526869997 | Shop at ECS Tuning | ||||||
| 24 | Bracket, wheelspeed sensor, right | 1 | 34526869998 | Shop at ECS Tuning | ||||||
| 25 | Holder wheel speed sensor left | 1 | 34525A244C7 | NoS | Shop at ECS Tuning | |||||
| 25 | Holder wheel speed sensor right | 1 | 34525A244C8 | NoS | Shop at ECS Tuning | |||||
| 26 | ASA screw, self-threading | M6X16 | 4 | 34509804151 | Shop at ECS Tuning | |||||
| 27 | Heli-Coil threaded insert | M6X12 | 4 | 33306786621 | Shop at ECS Tuning | |||||
| 28 | Hex nut | M14X1.25X18 | 2 | 07148848831 | Shop at ECS Tuning | |||||
| 29 | Eccentric bolt | M14X1.25X16 | 2 | 07148857293 | Shop at ECS Tuning | |||||
| 30 | Eccentric disc | M14X1.25X16 | 2 | 07148857294 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
