Actuator for HSR/mounting parts/ECU for BMW 5 Series G60 Sedan 520i (2024)

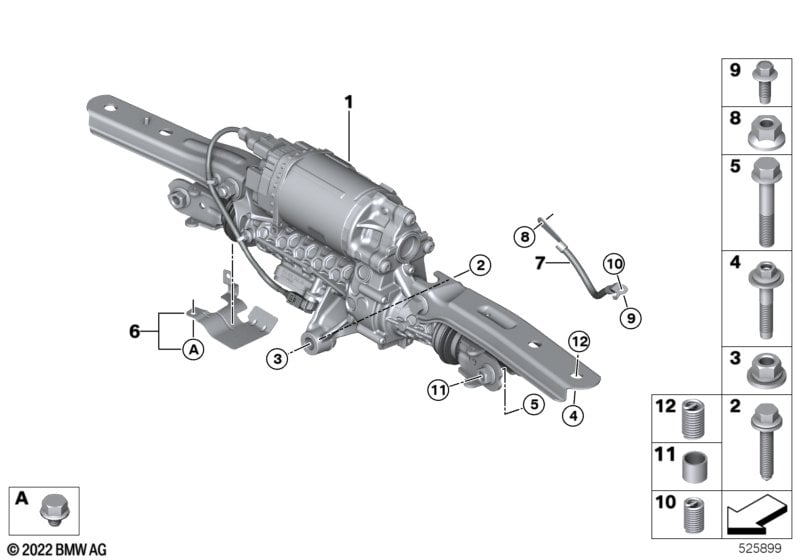

This Actuator for HSR/mounting parts/ECU technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Adaptive suspension, Professional |
S2VVA=Yes |
||||||||
| 01 | Actuator for HSR | 1 | 33348878089 | Shop at ECS Tuning | ||||||
| 02 | Hexagon screw with flange | M12X1,5X65-10.9 | 1 | 31106770256 | $2.56 | Shop at ECS Tuning | ||||
| 03 | Self-locking collar nut | M12X1,5-10 ZNS3 | 1 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| 04 | Screw self-tapping | M14X1,5X75-10.9 | 4 | 31106850776 | Shop at ECS Tuning | |||||
| 05 | Hexagon screw with flange | M12X1,5X67-10.9 | 2 | 07119906489 | $2.42 | Shop at ECS Tuning | ||||
| 06 | Repair kit heat shield | 2 | 33348842876 | Shop at ECS Tuning | ||||||
| 07 | Earth strap | PHEV | 1 | 33346870078 | Shop at ECS Tuning | |||||
| 08 | Nut | M6 | 1 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Hexagon screw, self-threading | M6X16 | 1 | 37146869771 | Shop at ECS Tuning | |||||
| 10 | Heli-Coil threaded insert | M6X12 | 2 | 33306786621 | Shop at ECS Tuning | |||||
| 11 | Not offered by BMW | X | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 12 | Threaded plug | M14X1,5X35 | 4 | 33306780502 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Actuator for HSR/mounting parts/ECU?
- This technical diagram illustrates the Actuator for HSR/mounting parts/ECU within the Rear Axle group for the 5 Series G60 Sedan 520i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Actuator for HSR (Part #33348878089).
- Which models use the hardware listed in this Actuator for HSR/mounting parts/ECU?
- The hardware and components featured in the Actuator for HSR/mounting parts/ECU are specific to the 5 Series G60 Sedan 520i produced during 2024. These technical specifications ensure that parts like the Actuator for HSR (33348878089) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Actuator for HSR/mounting parts/ECU assembly?
- Each item in the Actuator for HSR/mounting parts/ECU corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Actuator for HSR by locating its position on the schematic, which then links to the official BMW part number 33348878089 for the Rear Axle section.
