Rear stabilizer bar/Dynamic Drive for BMW 5 Series G60 Sedan 550eX (2025)

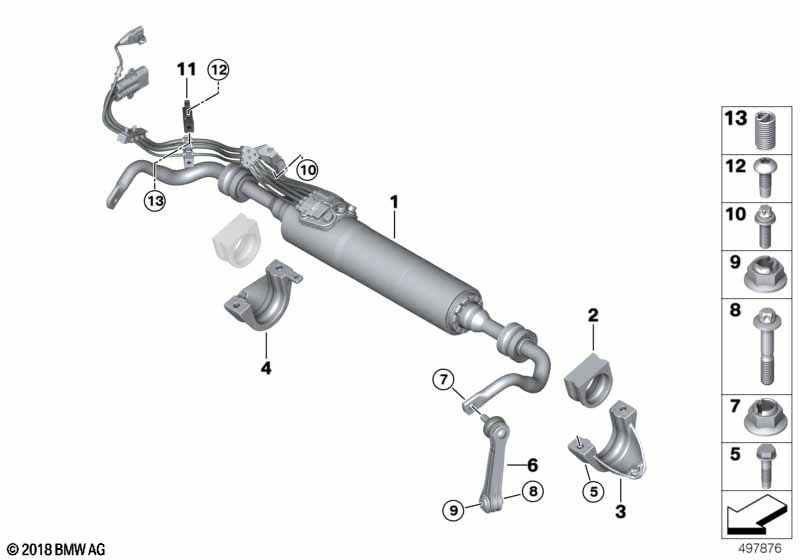

This Rear stabilizer bar/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M sports suspension Professional |
S2VWA=Yes |
||||||||
| 01 | Active stabilizer rear | 1 | 37105B64EC7 | Shop at ECS Tuning | ||||||
| 02 | Part not available separately | X | 00000000000 | Shop at ECS Tuning | ||||||
| 03 | Bracket for left stabilizer bar | 1 | 37126861481 | Shop at ECS Tuning | ||||||
| 04 | Bracket for right stabilizer bar | 1 | 37126861480 | Shop at ECS Tuning | ||||||
| 05 | Screw self-tapping | M10X40-10.9 | 4 | 33556776944 | Shop at ECS Tuning | |||||
| 06 | Rear swing support | 2 | 33556896816 | Shop at ECS Tuning | ||||||
| 07 | Hex nut wiht flange | M12X1,5-10-ZNS3 | 2 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| 08 | ASA-Bolt | M10X55 | 2 | 31106863105 | Shop at ECS Tuning | |||||
| 09 | Hexagon nut with collar | M10-10 ZNS3 | 2 | 33556790913 | Shop at ECS Tuning | |||||
| 10 | ISA screw | M8X16 10.9 ZNS3 | 1 | 07129908644 | Shop at ECS Tuning | |||||
| 11 | Clip | 1 | 37106866298 | Shop at ECS Tuning | ||||||
| 12 | ISA bolt, self-threading | M6X16-SP-10.9 | 2 | 07129907902 | Shop at ECS Tuning | |||||
| 13 | Heli-Coil threaded insert | M6 | 2 | 07149365479 | Shop at ECS Tuning | |||||
