Rear spring strut assy EDC for BMW 5 Series G90 M5 M5 (2025)

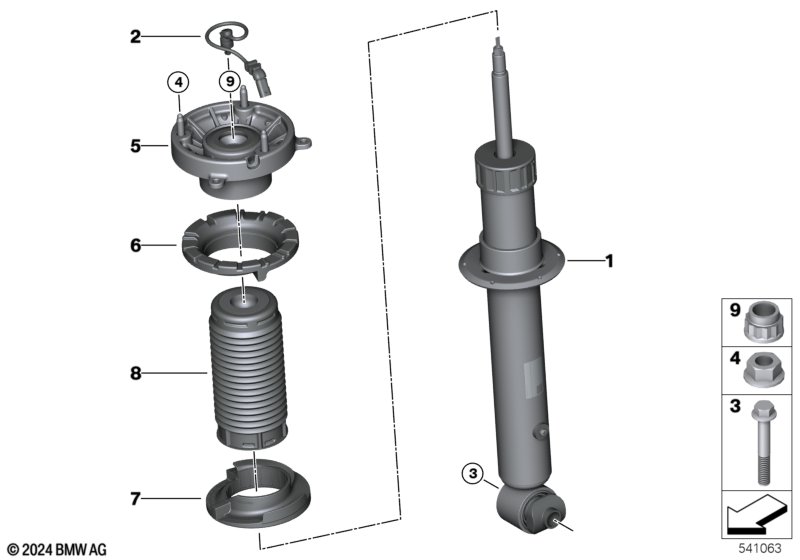

This Rear spring strut assy EDC technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber, rear | 2 | 33507889559 | Shop at ECS Tuning | ||||||
| 02 | Adapter wire for EDC | 2 | 33507856916 | Shop at ECS Tuning | ||||||
| 03 | Hexagon bolt | M16X1,5X110 | 2 | 07145A9B1B9 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M8-10 ZNS3 | 6 | 33506883897 | Shop at ECS Tuning | |||||
| 05 | Guide support | 2 | 33547889544 | Shop at ECS Tuning | ||||||
| 06 | Spring pad upper | 2 | 33505A144F6 | NoS | Shop at ECS Tuning | |||||
| 07 | Spring pad, bottom | 2 | 33505A144F5 | NoS | Shop at ECS Tuning | |||||
| 08 | Auxiliary shock absorber, rear | 2 | 33537887068 | NoS | Shop at ECS Tuning | |||||
| 09 | Nut, self-locking | M14X1,5-05 ZNS3 | 2 | 34339806226 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
