Shock absorber, rear for BMW 2 Series F74 Gran Coupé 218 (2025)

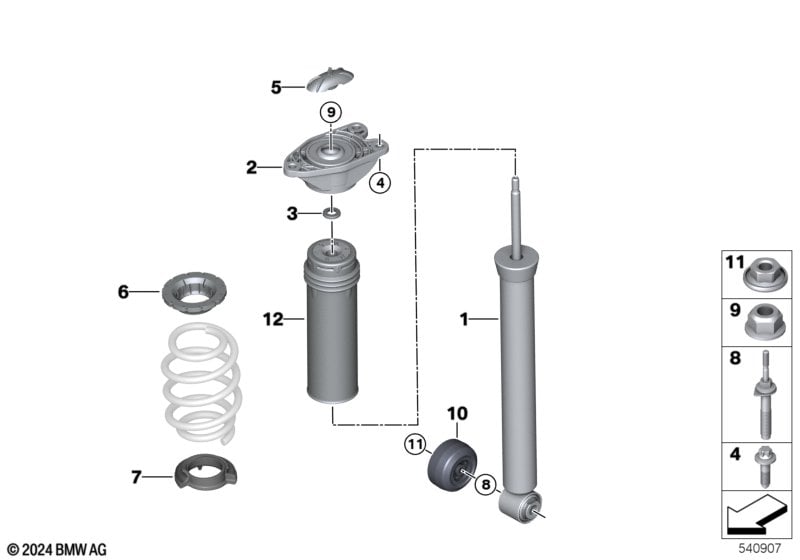

This Shock absorber, rear technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW light-alloy wheel Y-spoke 974 STD SO or BMW LA wheel Y-spoke 975M STD SO or BMW LA wheel Y-spoke 976M STD SO or BMW forg wh Y-Sp. 1085M STD SO sol p or BMW LA wh. Y-spoke 975M RSC SO BIC or Winter instead of summer tires ex-fact. |
S1H2A=Yes S1H5A=Yes S1H8A=Yes S3NAA=Yes S3P3A=Yes S931A=Yes |
||||||||
| 01 | Stoßdämpfer hinten | 2 | 33505A34C39 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive M suspension |
S2VFA=Yes |
|||||||||
| 01 | Stoßdämpfer hinten | 2 | 33505A34C49 | Shop at ECS Tuning | ||||||
| 02 | Guide support | 2 | 33506889456 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive M suspension |
S2VFA=Yes |
|||||||||
| 02 | Guide support | 2 | 33505A323B5 | Shop at ECS Tuning | ||||||
| 03 | Conical ring | 2 | 33506864789 | Shop at ECS Tuning | ||||||
| 04 | Star-socket screw | M8X25-PC-10.9 | 6 | 07119907137 | Shop at ECS Tuning | |||||
| 05 | Covering cap | 2 | 33506863445 | Shop at ECS Tuning | ||||||
| 06 | Spring pad upper | 2 | 33536875113 | Shop at ECS Tuning | ||||||
| 07 | Spring pad lower | 2 | 33536871665 | Shop at ECS Tuning | ||||||
| 08 | Threaded stud | 2 | 07146897171 | Shop at ECS Tuning | ||||||
| 09 | Hex nut wiht flange | M10X1-8-ZNS3 | 2 | 07119907135 | Shop at ECS Tuning | |||||
| 10 | Vibration absorber | 230 HZ | 2 | 07146897637 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M8 | 2 | 07149117829 | Shop at ECS Tuning | |||||
| 12 | Auxiliary damper with protective tube | 2 | 33506897467 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive M suspension |
S2VFA=Yes |
|||||||||
| 12 | Auxiliary damper with protective tube | 2 | 33506897478 | Shop at ECS Tuning | ||||||
