Front brake pad wear sensor / Lucas for BMW 3 Series E21 318i (1982)

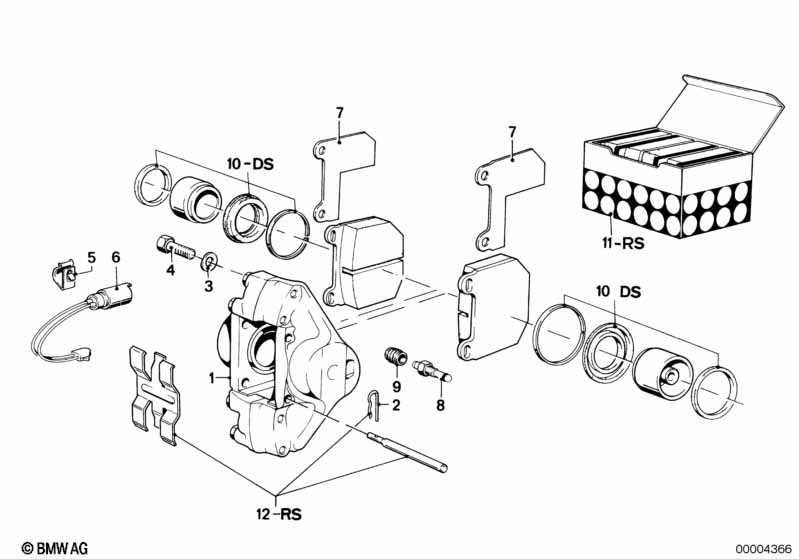

This Front brake pad wear sensor / Lucas technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Lucas | |||||||||
| 01 | Caliper with out brake pads left | 1 | 34111150261 | $469.70 | ENDED | Shop at ECS Tuning | ||||
| 01 | Caliper with out brake pads right | 1 | 34111150262 | $469.70 | ENDED | Shop at ECS Tuning | ||||
| 01 | Brake caliper | 1 | 34119059181 | $973.71 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | 4 | 34111121263 | $1.32 | Shop at ECS Tuning | |||||
| 03 | Wave washer | B12-ZN | 4 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 05 | Cable clamp | D=10-12MM | 2 | 61131361897 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 06 | Brake pad wear sensor | 1 | 34351179821 | $10.93 | Shop at ECS Tuning | |||||
| 07 | Securing plate | 4 | 34111122281 | $5.34 | Shop at ECS Tuning | |||||
| 08 | Ventilation valve | 2 | 34111121206 | $8.90 | Shop at ECS Tuning | |||||
| 09 | Kit dust cap | 2 | 34111121207 | $3.82 | ENDED | Shop at ECS Tuning | ||||
| 10 | Repair set brake caliper | 2 | 34111121203 | $32.18 | ENDED | Shop at ECS Tuning | ||||
| 11 | Repair kit, brake pads asbestos-free | TEXTAR T444 | 1 | 34111159249 | $99.15 | Shop at ECS Tuning | ||||
| 11 | Repair kit, brake pads asbestos-free | TEXTAR POLITEX | 1 | 34111159251 | $64.45 | ENDED | Shop at ECS Tuning | |||
| 12 | Set mounting parts | 1 | 34111150540 | $113.71 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
