Front brake / brake disc for BMW 3 Series E21 320i (1982)

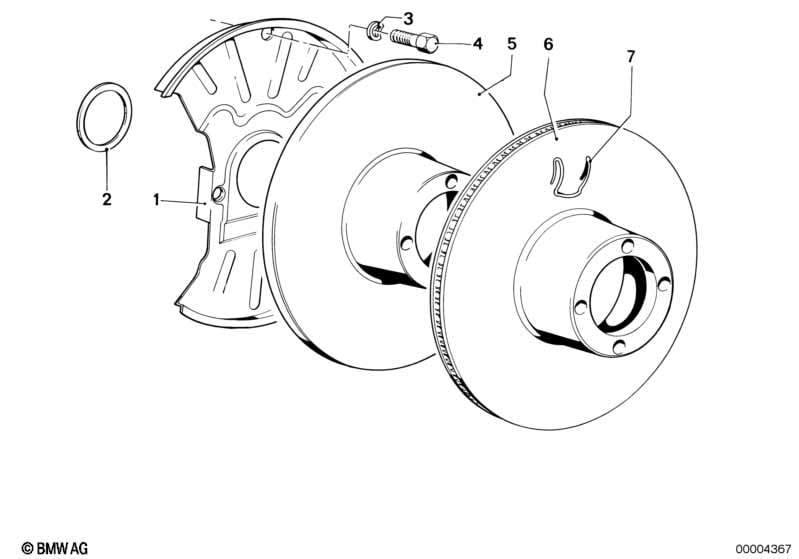

This Front brake / brake disc technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection plate left | 1 | 34111153579 | $75.17 | Shop at ECS Tuning | |||||
| 01 | Protection plate right | 1 | 34111153580 | $75.17 | Shop at ECS Tuning | |||||
| 02 | Gasket ring | 2 | 34111124442 | $7.59 | Shop at ECS Tuning | |||||
| 03 | Washer | 5.3-140 HV-ZNS | 6 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X10-8.8-ZNS3 | 6 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Brake disk | 255X12,7 | 2 | 09/1977 | 34111163128 | $139.45 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Front brake / brake disc?
- This technical diagram illustrates the Front brake / brake disc within the Brakes group for the 3 Series E21 320i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Protection plate left (Part #34111153579).
- Which models use the hardware listed in this Front brake / brake disc?
- The hardware and components featured in the Front brake / brake disc are specific to the 3 Series E21 320i produced during 1982. These technical specifications ensure that parts like the Protection plate left (34111153579) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front brake / brake disc assembly?
- Each item in the Front brake / brake disc corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Protection plate left by locating its position on the schematic, which then links to the official BMW part number 34111153579 for the Brakes section.
