Front brake / brake disc for BMW 6 Series E24 633CSi (1984)

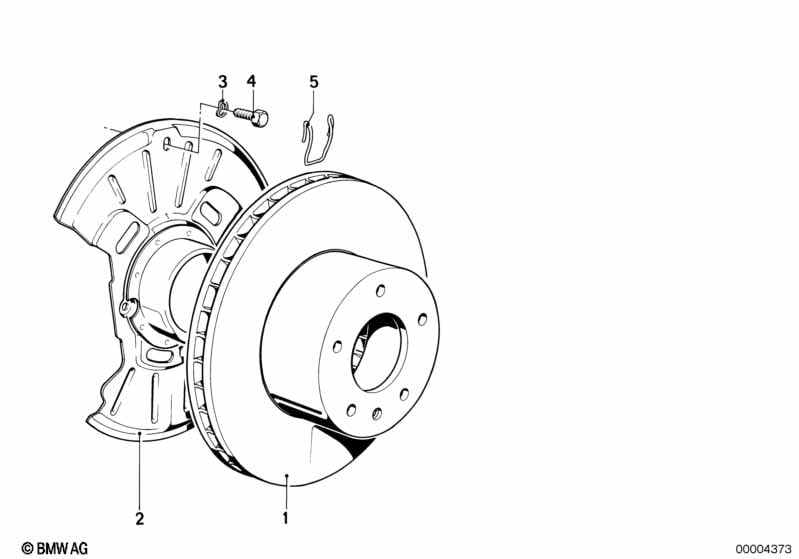

This Front brake / brake disc technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake disc, ventilated | 282X25 | 2 | 09/1982 | 34111163147 | $114.42 | ENDED | Shop at ECS Tuning | ||
| 02 | Protection plate right | 1 | 09/1982 | 34111151510 | $28.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Protection plate left | 1 | 09/1982 | 34111152605 | $28.63 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X8 | 6 | 34103451068 | $2.61 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
