Front brake for BMW 7 Series E23 728 (1979)

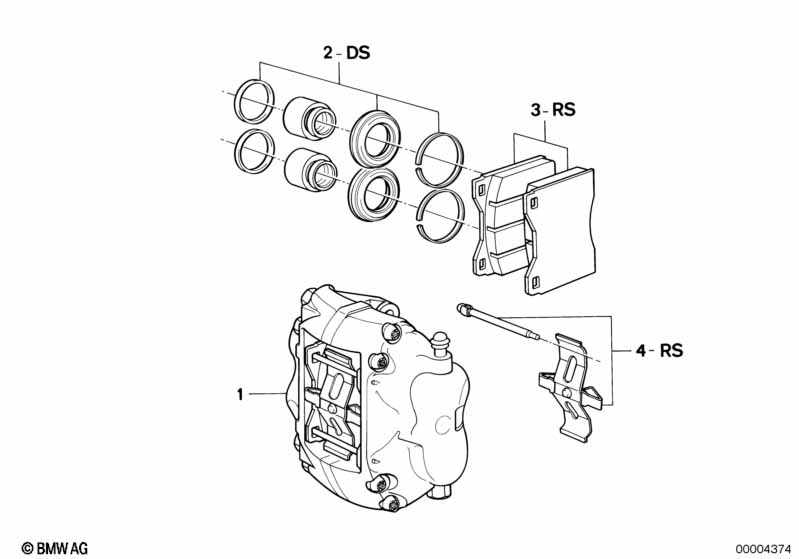

This Front brake technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper with out brake pads left | 280X22 | 1 | 09/1982 | 34111120291 | $412.12 | ENDED | Shop at ECS Tuning | ||
| 01 | Caliper with out brake pads right | 280X22 | 1 | 09/1982 | 34111120292 | $412.12 | ENDED | Shop at ECS Tuning | ||
| 02 | Repair set brake caliper | ATE | 2 | 34111158692 | $46.19 | Shop at ECS Tuning | ||||
| 03 | Repair kit, brake pads asbestos-free | TEXTAR T476 | 1 | 34111159261 | $125.20 | Shop at ECS Tuning | ||||
| 03 | Repair kit, brake pads asbestos-free | TEXTAR POLITEX | 1 | 34111159263 | $56.64 | ENDED | Shop at ECS Tuning | |||
| 04 | Set mounting parts | ATE | 1 | 09/1982 | 34111150554 | $27.39 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Front brake?
- This technical diagram illustrates the Front brake within the Brakes group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Caliper with out brake pads left (Part #34111120291).
- Which models use the hardware listed in this Front brake?
- The hardware and components featured in the Front brake are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Caliper with out brake pads left (34111120291) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front brake assembly?
- Each item in the Front brake corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Caliper with out brake pads left by locating its position on the schematic, which then links to the official BMW part number 34111120291 for the Brakes section.
