Front brake pad wear sensor for BMW 7 Series E23 735i (1982)

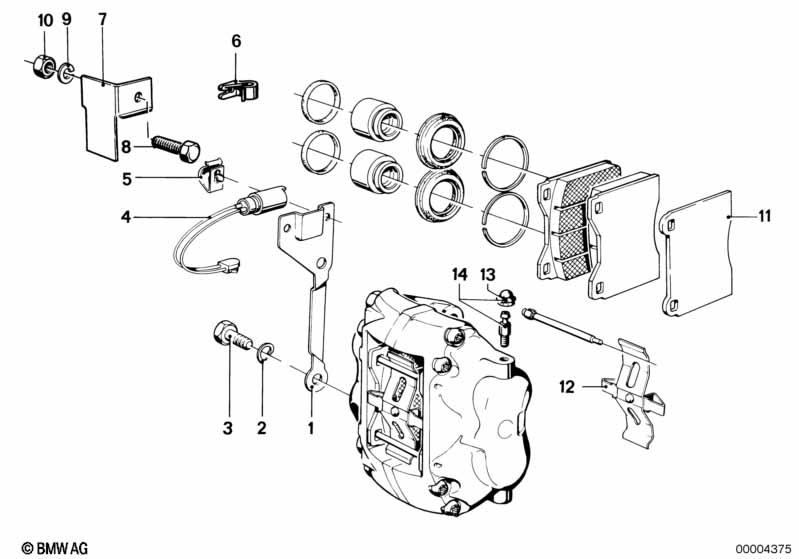

This Front brake pad wear sensor technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder | 1 | 34111119103 | $2.77 | Shop at ECS Tuning | |||||
| 02 | Wave washer | B12-ZN | 4 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 04 | Brake pad wear sensor | 1 | 34351179821 | $10.93 | Shop at ECS Tuning | |||||
| 05 | Cable clamp | D=10-12MM | 1 | 61131361897 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 06 | Holder | D=10MM | 1 | 61131362825 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 61131362911 | $71.42 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Spring washer Black | B6-ZN | 1 | 05/1986 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 09 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Protection plate | 4 | 34111116005 | $6.22 | Shop at ECS Tuning | |||||
| 13 | Dust cap | 4 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 14 | Ventilation valve | 4 | 34111103232 | $8.76 | Shop at ECS Tuning |
