Front brake / brake disc for BMW 7 Series E23 728i (1982)

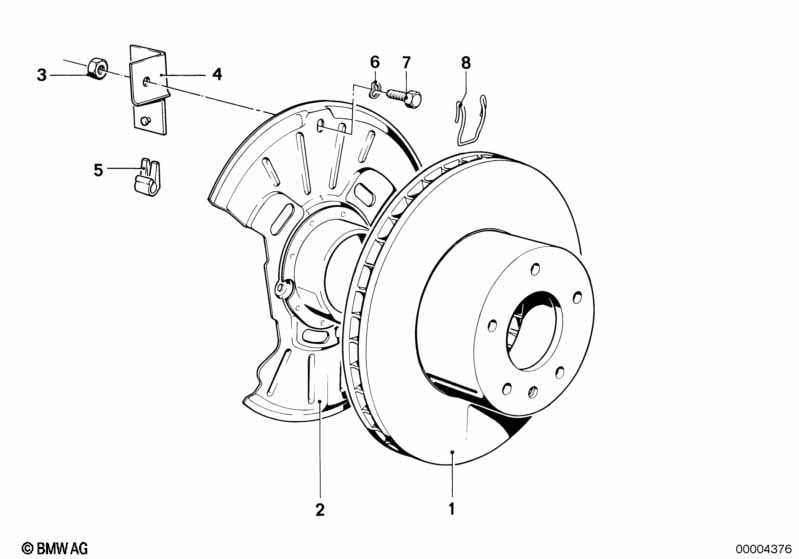

This Front brake / brake disc technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake disc, ventilated | 280X22 | 2 | 09/1982 | 34111163129 | $115.84 | ENDED | Shop at ECS Tuning | ||
| 02 | Protection plate left | 1 | 34111115383 | $17.36 | ENDED | Shop at ECS Tuning | ||||
| 02 | Protection plate right | 1 | 34111115384 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 02 | Protection plate left | 1 | 34111117753 | $19.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Protection plate right | 1 | 34111117754 | $19.00 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Bracket right | 1 | 34511121523 | $11.27 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cable clamp | D=6MM | 1 | 63121364431 | $0.93 | Shop at ECS Tuning | ||||
| 06 | Spring washer Black | B6-ZN | 6 | 05/1986 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 06 | Washer | 5.3-140 HV-ZNS | 6 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6X12-8.8-ZNNIV | 6 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X8 | 6 | 34103451068 | $2.61 | Shop at ECS Tuning | ||||
| 08 | Clamp | 4,5G | X | 34211113013 | ENDED | Shop at ECS Tuning | ||||
