Front brake pad wear sensor for BMW 3 Series E30 323i (1986)

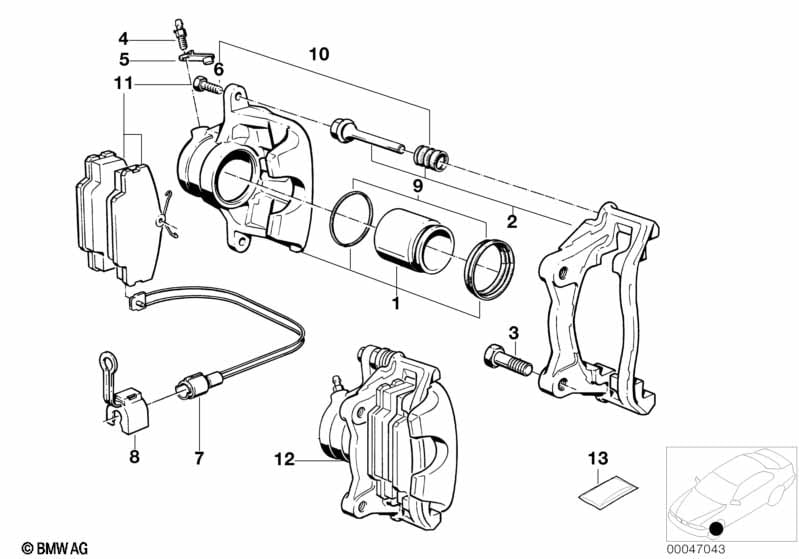

This Front brake pad wear sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Hex bolt | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 04 | Ventilation valve | 2 | 34111121206 | $8.90 | Shop at ECS Tuning | |||||
| 05 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 06 | Self-locking hex bolt | M8X21 10.9 | 4 | 34111154445 | $1.50 | Shop at ECS Tuning | ||||
| 07 | Brake pad wear sensor | 1 | 34359058889 | $11.58 | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 34351153966 | $0.88 | Shop at ECS Tuning | |||||
| 09 | Repair set brake caliper | 2 | 34111154440 | $26.91 | Shop at ECS Tuning | |||||
| 10 | Repair kit guide bush | 2 | 34111161936 | $34.81 | Shop at ECS Tuning | |||||
| 11 | Repair kit, brake pads asbestos-free | 1 | 34111153036 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Brake pad paste | 3G | 1 | 83192158851 | Shop at ECS Tuning | |||||
| 13 | Brake pad paste | 3G | 1 | 83192158851 | Shop at ECS Tuning | |||||
