Rear brake / brake pad / wear sensor for BMW 3 Series E21 323i (1982)

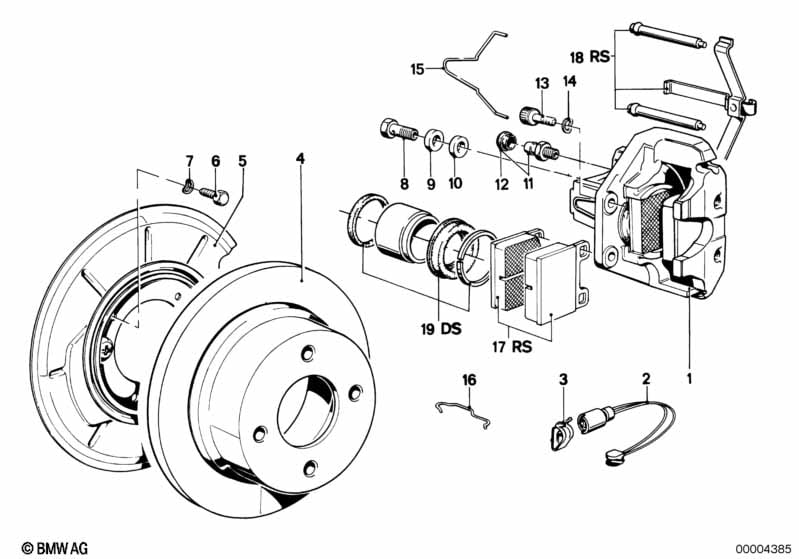

This Rear brake / brake pad / wear sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper with out brake pads left | 1 | 08/1979 | 34211151645 | $943.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Caliper with out brake pads right | 1 | 08/1979 | 34211151646 | $943.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Set AT-caliper left/right | 1 | 08/1979 | 34219058596 | ENDED | Shop at ECS Tuning | ||||
| 02 | Brake pad wear sensor | 1 | 34351179821 | $10.93 | Shop at ECS Tuning | |||||
| 03 | Cable clamp | D=10-12MM | 2 | 61131361897 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 04 | Brake disk | 258X10 | 2 | 34216755408 | Shop at ECS Tuning | |||||
| 05 | Protection plate left | 1 | 34211119791 | $38.97 | ENDED | Shop at ECS Tuning | ||||
| 05 | Protection plate right | 1 | 34211150298 | $38.97 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M10X16 | 4 | 07119914121 | $0.41 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 08 | Hollow bolt | 2 | 34321120353 | $3.11 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | A12X15-CU | 2 | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | A10X16-CU | 2 | 07119963106 | $0.10 | Shop at ECS Tuning | ||||
| 11 | Ventilation valve | 2 | 34111103225 | $6.30 | Shop at ECS Tuning | |||||
| 12 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 13 | Inner hex bolt | M10X24 | 4 | 34211120684 | $6.58 | ENDED | Shop at ECS Tuning | |||
| 14 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 15 | Spring | 1 | 34211150163 | $5.15 | ENDED | Shop at ECS Tuning | ||||
| 16 | Clip | 1 | 34211150841 | $0.64 | Shop at ECS Tuning | |||||
| 17 | Repair kit, brake pads asbestos-free | TEXTAR T445 | 1 | 34211159253 | $71.00 | ENDED | Shop at ECS Tuning | |||
| 17 | Repair kit, brake pads asbestos-free | TEXTAR POLITEX | 1 | 34211159255 | ENDED | Shop at ECS Tuning | ||||
| 18 | Set mounting parts | 1 | 34211150545 | $30.03 | Shop at ECS Tuning | |||||
| 19 | Repair set brake caliper | 1 | 08/1979 | 34211152932 | $20.77 | Shop at ECS Tuning |
