Drum brake-brake shoes/brake carrier for BMW 5 Series E12 518 (1978)

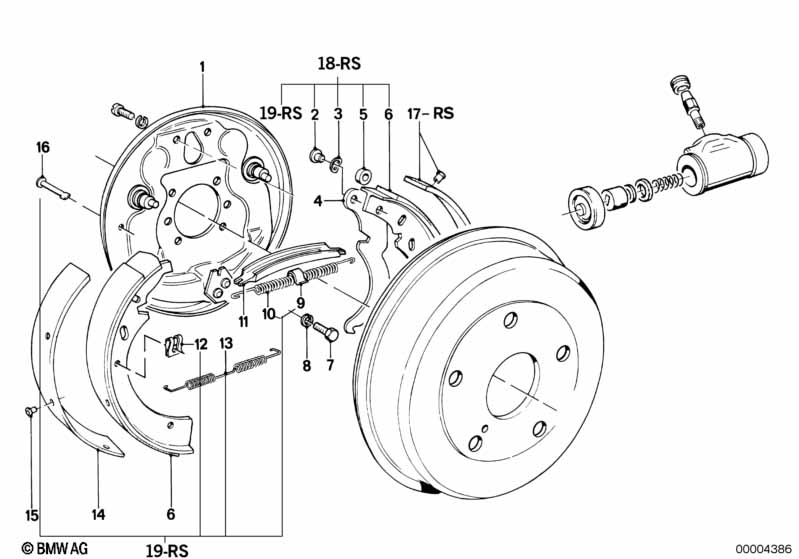

This Drum brake-brake shoes/brake carrier technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Calliper carrier left | 1 | 34211111848 | $53.48 | Shop at ECS Tuning | |||||
| 01 | Calliper carrier right | 1 | 34211111849 | $53.48 | Shop at ECS Tuning | |||||
| 02 | Rivet | 2 | 34213660164 | $2.25 | Shop at ECS Tuning | |||||
| 03 | Wave washer | 10,5 / 18 | 2 | 34211117860 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Brake lever | 2 | 34411100782 | $3.86 | Shop at ECS Tuning | |||||
| 05 | Shim | 2 | 34213660163 | $1.27 | Shop at ECS Tuning | |||||
| 06 | Brake shoe asbestos-free | 250MM JURID 580 | 4 | 34211159588 | $45.52 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M10X16-10.9 PHR | X | 07119919660 | $0.43 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B10-ZNS3 | X | 07119904463 | Shop at ECS Tuning | |||||
| 09 | Bow | 2 | 34213061725 | $9.02 | Shop at ECS Tuning | |||||
| 10 | Tension spring | 2 | 34213660185 | $3.32 | Shop at ECS Tuning | |||||
| 11 | Thrust rod left | 1 | 34213660190 | $6.02 | Shop at ECS Tuning | |||||
| 11 | Thrust rod right | 1 | 34213660191 | $6.02 | Shop at ECS Tuning | |||||
| 12 | Compression spring | 4 | 34211116476 | $1.50 | Shop at ECS Tuning | |||||
| 13 | Tension spring | 2 | 34213660186 | $5.53 | Shop at ECS Tuning | |||||
| 14 | Brake lining asbestos-free | ENERGIT 580 | 4 | 34211159590 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rivet | C4X8 | X | 07119949241 | $1.17 | Shop at ECS Tuning | ||||
| 16 | Roll pin | 4 | 34211116477 | $5.90 | Shop at ECS Tuning | |||||
| 17 | Repair kit, brake pads asbestos-free | JURID 580 | 1 | 34211160165 | $42.30 | Shop at ECS Tuning | ||||
| 18 | Repair kit brake shoe with springs | 1 | 34419064269 | $126.11 | ENDED | Shop at ECS Tuning | ||||
| 19 | Repair kit springs | 1 | 34419064268 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
