Rear wheel brake, drum brake for BMW 5 Series E12 518 (1976)

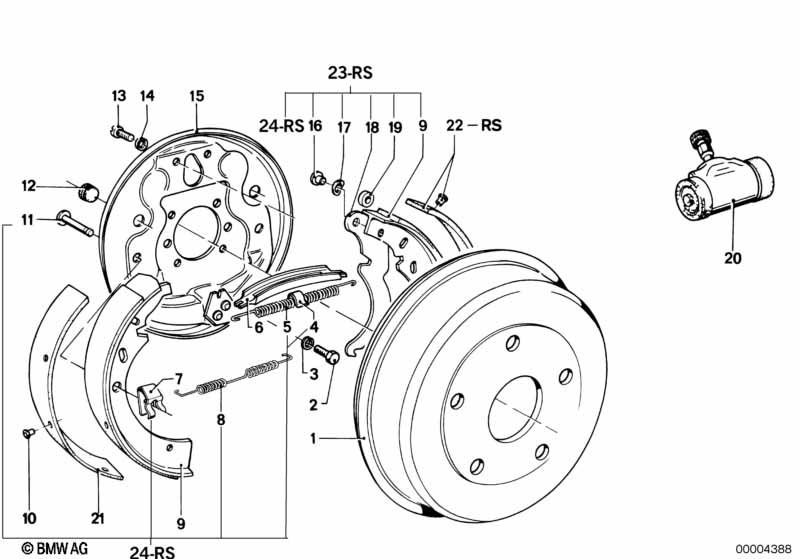

This Rear wheel brake, drum brake technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sweden version |
=Yes |
|||||||||
| 01 | Brake drum | D=250MM | 2 | 34211158710 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | M10X16-10.9 PHR | X | 07119919660 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B10-ZNS3 | X | 07119904463 | Shop at ECS Tuning | |||||
| 04 | Bow | 2 | 34213061725 | $9.02 | Shop at ECS Tuning | |||||
| 05 | Tension spring | 2 | 34213660185 | $3.32 | Shop at ECS Tuning | |||||
| 06 | Thrust rod left | 1 | 34213660190 | $6.02 | Shop at ECS Tuning | |||||
| 06 | Thrust rod right | 1 | 34213660191 | $6.02 | Shop at ECS Tuning | |||||
| 07 | Compression spring | 4 | 34211116476 | $1.50 | Shop at ECS Tuning | |||||
| 08 | Tension spring | 2 | 34213660186 | $5.53 | Shop at ECS Tuning | |||||
| 09 | Brake shoe | 4 | 34211111852 | ENDED | Shop at ECS Tuning | |||||
| 09 | Brake shoe asbestos-free | 250MM JURID 580 | 4 | 34211159588 | $45.52 | Shop at ECS Tuning | ||||
| 10 | Rivet | C4X8 | X | 07119949241 | $1.17 | Shop at ECS Tuning | ||||
| 11 | Roll pin | 4 | 34211116477 | $5.90 | Shop at ECS Tuning | |||||
| 12 | Blind plug | 4 | 34211112791 | Shop at ECS Tuning | ||||||
| 13 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 14 | Spring washer Black | B6-ZN | 4 | 06/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 14 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Calliper carrier left | 1 | 34211112792 | ENDED | Shop at ECS Tuning | |||||
| 15 | Calliper carrier right | 1 | 34211112793 | ENDED | Shop at ECS Tuning | |||||
| 16 | Rivet | 2 | 34213660164 | $2.25 | Shop at ECS Tuning | |||||
| 17 | Wave washer | 10,5 / 18 | 2 | 34211117860 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Brake lever | 2 | 34411100782 | $3.86 | Shop at ECS Tuning | |||||
| 19 | Shim | 2 | 34213660163 | $1.27 | Shop at ECS Tuning | |||||
| 20 | Wheel brake cylinder | D=22,20MM | 2 | 34211109342 | ENDED | Shop at ECS Tuning | ||||
| 21 | Brake lining asbestos-free | ENERGIT 580 | 4 | 34211159590 | ENDED | Shop at ECS Tuning | ||||
| 22 | Repair kit, brake pads asbestos-free | JURID 580 | 1 | 34211160165 | $42.30 | Shop at ECS Tuning | ||||
| 23 | Repair kit brake shoe with springs | 1 | 34419064269 | $126.11 | ENDED | Shop at ECS Tuning | ||||
| 24 | Repair kit springs | 1 | 34419064268 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
