Drum brake-brake drum/wheel brake cyl. for BMW 3 Series E36 318i (1998)

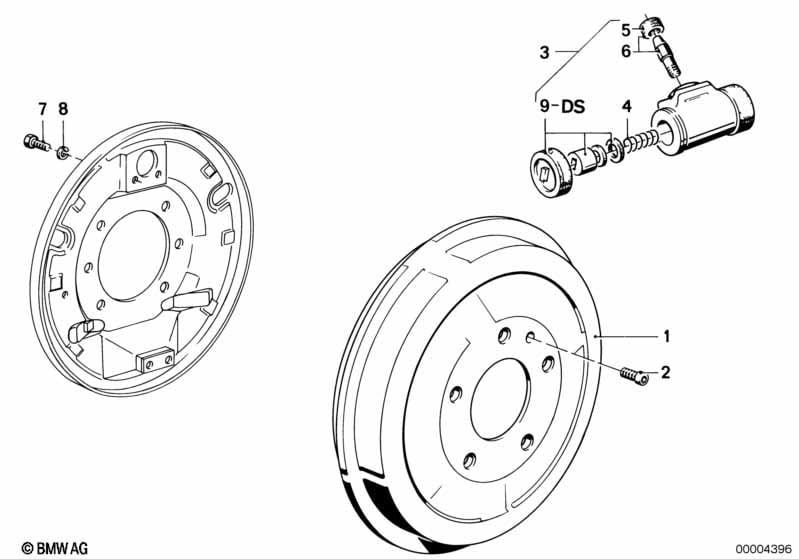

This Drum brake-brake drum/wheel brake cyl. technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake drum | D=228.5MM | 2 | 10/2012 | 34211159486 | $105.11 | Shop at ECS Tuning | |||
| 01 | Brake drum | D=228.5MM | 2 | 34216752366 | Shop at ECS Tuning | |||||
| 02 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 03 | Wheel brake cylinder | 23,8MM | 2 | 34211159569 | $64.27 | ENDED | Shop at ECS Tuning | |||
| 05 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 06 | Ventilation valve | 2 | 34111121206 | $8.90 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6-8 | 4 | 34211161981 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Drum brake-brake drum/wheel brake cyl.?
- This technical diagram illustrates the Drum brake-brake drum/wheel brake cyl. within the Brakes group for the 3 Series E36 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Brake drum (Part #34211159486).
- Which models use the hardware listed in this Drum brake-brake drum/wheel brake cyl.?
- The hardware and components featured in the Drum brake-brake drum/wheel brake cyl. are specific to the 3 Series E36 318i produced during 1998. These technical specifications ensure that parts like the Brake drum (34211159486) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drum brake-brake drum/wheel brake cyl. assembly?
- Each item in the Drum brake-brake drum/wheel brake cyl. corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Brake drum by locating its position on the schematic, which then links to the official BMW part number 34211159486 for the Brakes section.
