Drum brake-brake drum/wheel brake cyl. for BMW 3 Series E30 316i (1991)

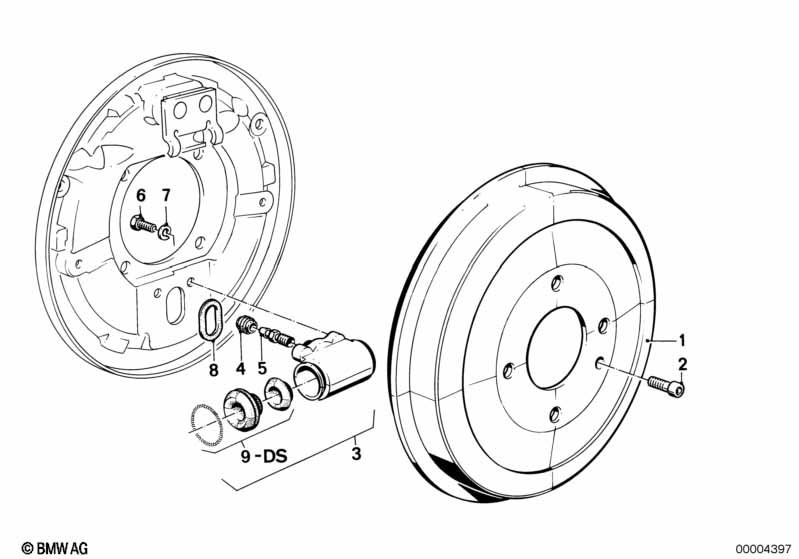

This Drum brake-brake drum/wheel brake cyl. technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake drum | D=228,5MM | 2 | 34211158556 | $98.79 | Shop at ECS Tuning | ||||
| 02 | Inner hex bolt | M8X12 | 2 | 34111123072 | $1.32 | Shop at ECS Tuning | ||||
| 03 | Wheel brake cylinder | 22,20MM | 2 | 09/1986 | 34211156167 | $64.94 | ENDED | Shop at ECS Tuning | ||
| 04 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 05 | Ventilation valve | 2 | 34111121206 | $8.90 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 2 | 34211154783 | $5.34 | Shop at ECS Tuning | |||||
| 09 | Wheel brake cylinder | 22,20MM | 2 | 09/1986 | 34211156167 | $64.94 | ENDED | Shop at ECS Tuning |
