Brake pipe front ABS for BMW 3 Series E30 320i (1990)

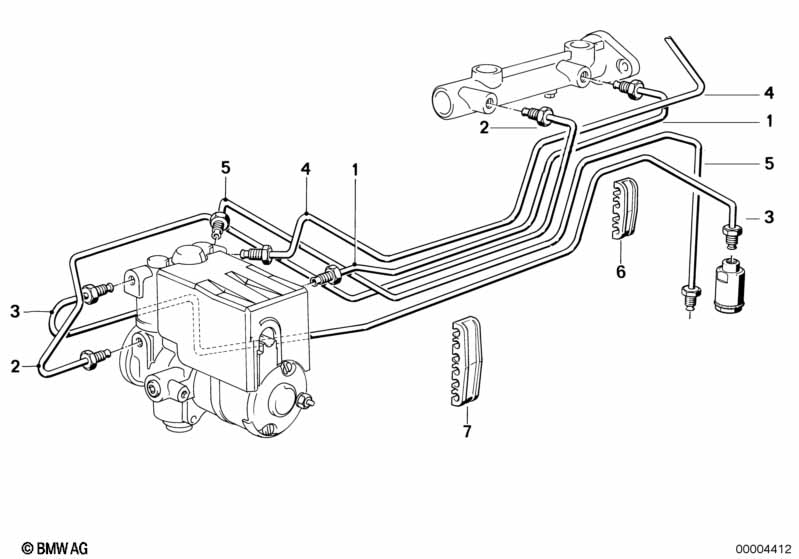

This Brake pipe front ABS technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ABS | |||||||||
| 01 | Pipe | M10/M10-645MM | 1 | 34326755586 | $8.65 | Shop at ECS Tuning | ||||
| 02 | Pipe | M10/M10-886MM | 1 | 34326755597 | $10.03 | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M10-940MM | 1 | 34326755600 | $8.65 | Shop at ECS Tuning | ||||
| 04 | Pipe | M10/M10-2039MM | 1 | 34326755649 | $10.03 | Shop at ECS Tuning | ||||
| 05 | Pipe | M10/M10-829MM | 1 | 34326755594 | $8.65 | Shop at ECS Tuning | ||||
| 06 | Spacer, 4-way | 2 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 07 | Brake pipe bracket | 3 | 34321155786 | $1.43 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
