Brake pipe rear for BMW 5 Series E12 520 (1981)

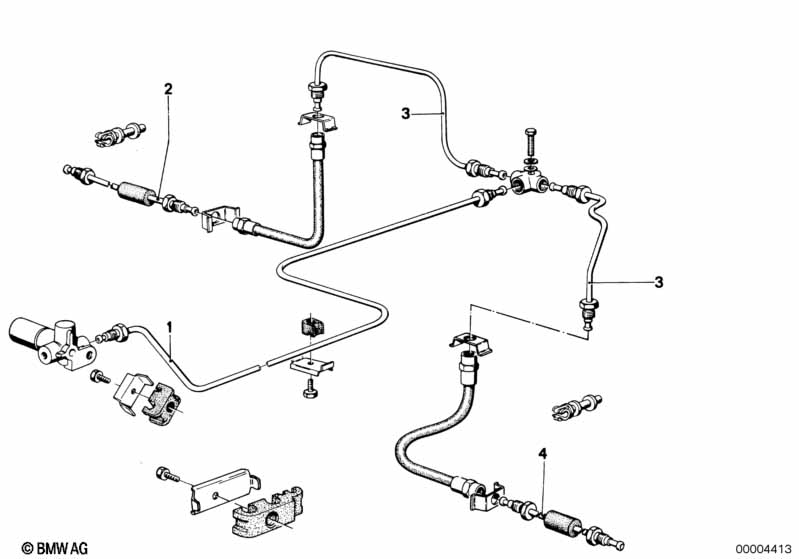

This Brake pipe rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| CIRCUIT 1 | ||||||||||
| 01 | Pipe | M10/M10-3275MM | 1 | 08/1979 | 34326755693 | $11.27 | ENDED | Shop at ECS Tuning | ||
| 02 | Brake pipe right | 1 | 34321108039 | ENDED | Shop at ECS Tuning | |||||
| 02 | Pipe | M10/M10-620MM | 1 | 34326755585 | $7.65 | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M10-190MM | 2 | 08/1998 | 34326755549 | $5.83 | Shop at ECS Tuning | |||
| 04 | Pipe | M10/M10-620MM | 1 | 34326755585 | $7.65 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Brake pipe rear?
- This technical diagram illustrates the Brake pipe rear within the Brakes group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #34326755693).
- Which models use the hardware listed in this Brake pipe rear?
- The hardware and components featured in the Brake pipe rear are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the Pipe (34326755693) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe rear assembly?
- Each item in the Brake pipe rear corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 34326755693 for the Brakes section.
