Brake pipe rear/mounting for BMW 5 Series E12 528 (1976)

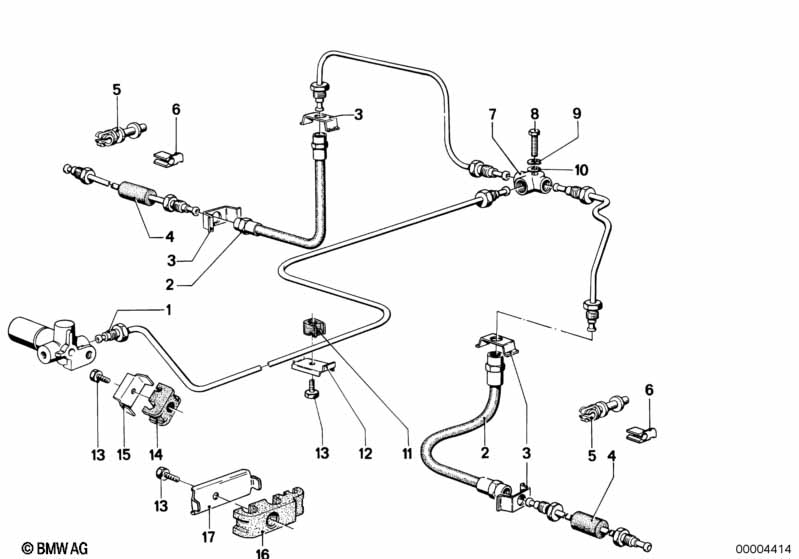

This Brake pipe rear/mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | M10X1 | X | 34321151806 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 02 | Brake hose rear | L=222MM | 2 | 34321159878 | $38.29 | Shop at ECS Tuning | ||||
| 03 | Clip | 4 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 04 | Rubber grommet | 2 | 34324050540 | $1.32 | Shop at ECS Tuning | |||||
| 05 | Clamp | 2 | 33321118526 | $1.88 | Shop at ECS Tuning | |||||
| 06 | Clamp | 2 | 34321238089 | $0.78 | ENDED | Shop at ECS Tuning | ||||
| 07 | Distribution piece | M10X1 | 1 | 10/2003 | 34331163566 | $8.78 | ENDED | Shop at ECS Tuning | ||
| 07 | Distribution piece | M10X1 | 1 | 34341111435 | $8.08 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt | M6X25 | 1 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Spring washer Black | B6-ZN | 1 | 07/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 09 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 11 | Clamp | 7 | 34321108210 | $0.60 | Shop at ECS Tuning | |||||
| 12 | Holder | 7 | 34321155062 | $0.60 | Shop at ECS Tuning | |||||
| 13 | Self tapping screw | X | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 14 | Clamp | 1 | 34321107929 | $0.57 | ENDED | Shop at ECS Tuning | ||||
| 15 | Holder | 1 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 16 | Clamp | X | 16121177005 | $0.93 | Shop at ECS Tuning | |||||
| 17 | Holder | X | 16121155064 | $1.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Brake pipe rear/mounting?
- This technical diagram illustrates the Brake pipe rear/mounting within the Brakes group for the 5 Series E12 528 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Connector (Part #34321151806).
- Which models use the hardware listed in this Brake pipe rear/mounting?
- The hardware and components featured in the Brake pipe rear/mounting are specific to the 5 Series E12 528 produced during 1976. These technical specifications ensure that parts like the Connector (34321151806) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe rear/mounting assembly?
- Each item in the Brake pipe rear/mounting corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Connector by locating its position on the schematic, which then links to the official BMW part number 34321151806 for the Brakes section.
