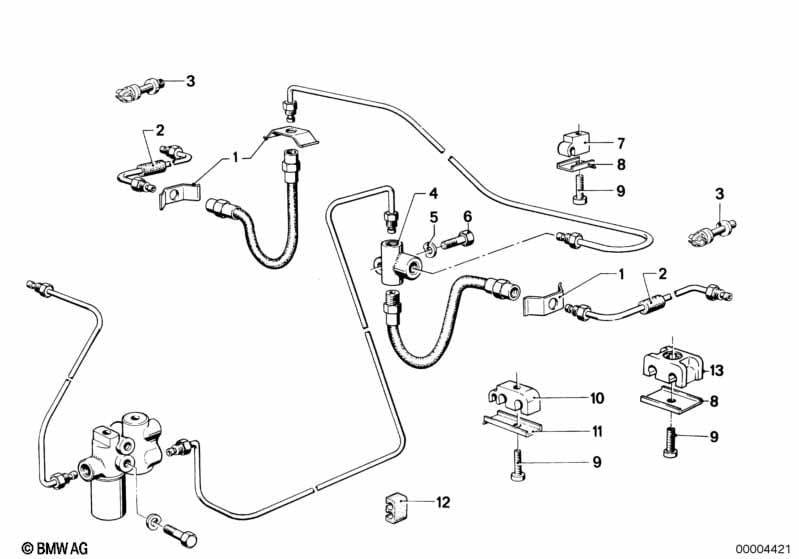

Brake pipe rear/mounting for BMW 3 Series E21 320 (1977)
This Brake pipe rear/mounting technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clip | 3 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 02 | Rubber grommet | 2 | 34324050540 | $1.32 | Shop at ECS Tuning | |||||
| 03 | Clamp | 2 | 33321118526 | $1.88 | Shop at ECS Tuning | |||||
| 04 | Distribution piece | M10X1 | 1 | 10/2003 | 34331163566 | $8.78 | ENDED | Shop at ECS Tuning | ||
| 04 | Distribution piece | M10X1 | 1 | 34341111435 | $8.08 | ENDED | Shop at ECS Tuning | |||
| 05 | Spring washer Black | B6-ZN | 1 | 12/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 05 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X25 | 1 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Clamp | 2 | 34321108210 | $0.60 | Shop at ECS Tuning | |||||
| 08 | Holder | 2 | 34321155062 | $0.60 | Shop at ECS Tuning | |||||
| 09 | Self tapping screw | 9 | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 10 | Clamp | 7 | 16121177005 | $0.93 | Shop at ECS Tuning | |||||
| 11 | Holder | 7 | 16121155064 | $1.62 | Shop at ECS Tuning | |||||
| 12 | Spacer holder | 1 | 34321107991 | $1.02 | Shop at ECS Tuning | |||||
| 13 | Clamp | 1 | 34321108212 | $2.70 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Brake pipe rear/mounting?
- This technical diagram illustrates the Brake pipe rear/mounting within the Brakes group for the 3 Series E21 320 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Clip (Part #34341163565).
- Which models use the hardware listed in this Brake pipe rear/mounting?
- The hardware and components featured in the Brake pipe rear/mounting are specific to the 3 Series E21 320 produced during 1977. These technical specifications ensure that parts like the Clip (34341163565) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe rear/mounting assembly?
- Each item in the Brake pipe rear/mounting corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Clip by locating its position on the schematic, which then links to the official BMW part number 34341163565 for the Brakes section.
