Brake pipe, front for BMW 3 Series E30 318i (1991)

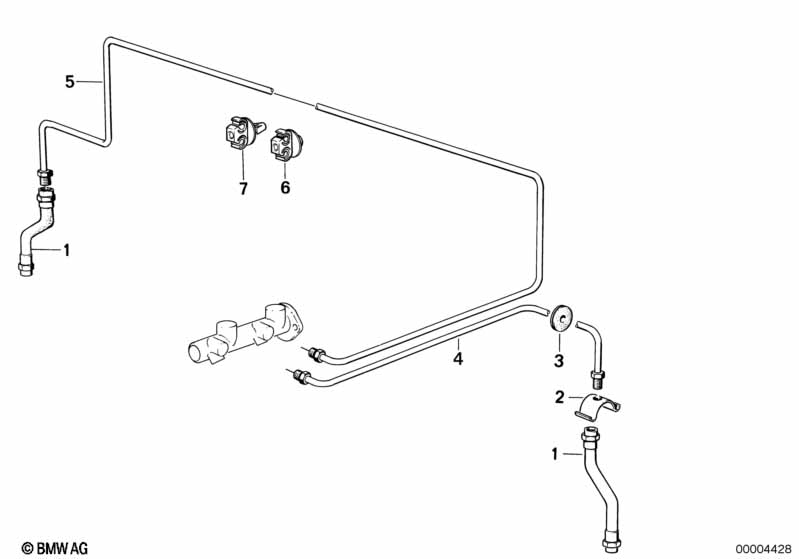

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake hose | 2 | 34321159890 | $53.80 | Shop at ECS Tuning | |||||
| 02 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 03 | Rubber grommet | D=40MM | 2 | 34321154322 | $1.02 | Shop at ECS Tuning | ||||
| 04 | Pipe | M10/M10-310MM | 1 | 34326755560 | $7.60 | Shop at ECS Tuning | ||||
| 04 | Pipe | M10/M10-360MM | 1 | 34326755565 | $7.60 | Shop at ECS Tuning | ||||
| 05 | Pipe | 1 | 34322283835 | $11.17 | Shop at ECS Tuning | |||||
| 05 | Pipe | M10/M10 | 1 | 34326772492 | $9.12 | Shop at ECS Tuning | ||||
| 06 | Brake pipe bracket | 3 | 34321160027 | $0.80 | Shop at ECS Tuning | |||||
| 07 | Brake pipe bracket | 1 | 34321156013 | $0.61 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Brake pipe, front?
- This technical diagram illustrates the Brake pipe, front within the Brakes group for the 3 Series E30 318i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Brake hose (Part #34321159890).
- Which models use the hardware listed in this Brake pipe, front?
- The hardware and components featured in the Brake pipe, front are specific to the 3 Series E30 318i produced during 1991. These technical specifications ensure that parts like the Brake hose (34321159890) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe, front assembly?
- Each item in the Brake pipe, front corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Brake hose by locating its position on the schematic, which then links to the official BMW part number 34321159890 for the Brakes section.
