ABS-accelerator sensor for BMW 3 Series E30 325ix (1990)

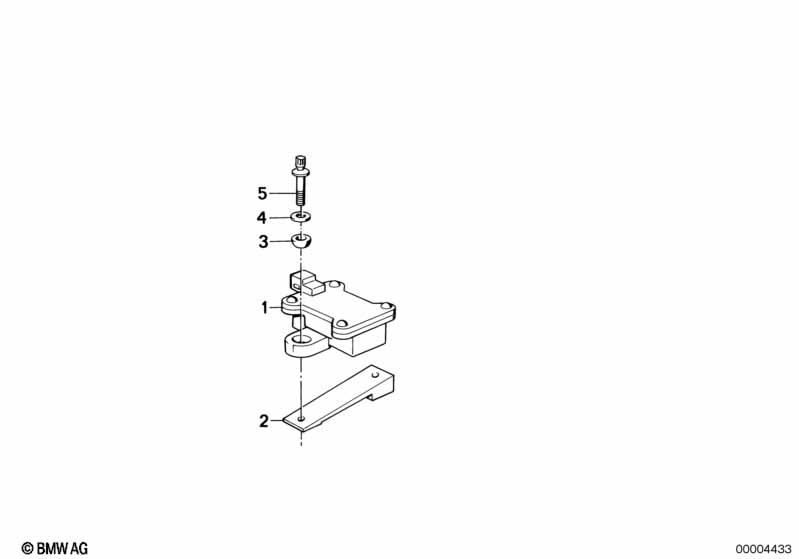

This ABS-accelerator sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator sensor | 1 | 34511156396 | $243.52 | Shop at ECS Tuning | |||||
| 02 | Chock | 2 | 34521158543 | ENDED | Shop at ECS Tuning | |||||
| 03 | Ball Cup | 2 | 34511156387 | $2.25 | ENDED | Shop at ECS Tuning | ||||
| 04 | Washer | 2 | 34511156408 | $2.84 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fracture bolt | M5 X 25 / 6 NM | 2 | 34511156386 | $2.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
