Anti block system-control unit for BMW 8 Series E31 850Ci

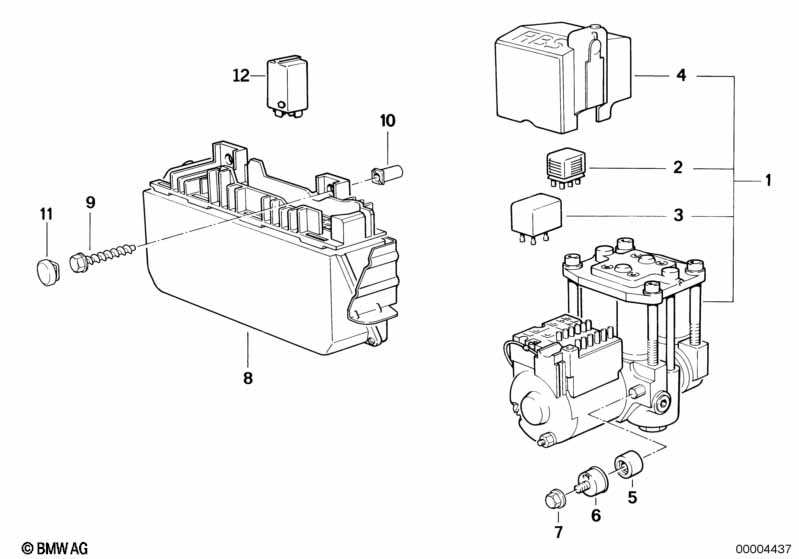

This Anti block system-control unit technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit | 1 | 34511157874 | $1739.40 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with ASC+T |
=Yes |
|||||||||
| 01 | Hydro unit | 1 | 34511160006 | $1778.25 | ENDED | Shop at ECS Tuning | ||||
| 02 | Relay timing and valve mechanism | 1 | 34511157427 | $52.55 | Shop at ECS Tuning | |||||
| For vehicles with ASC+T |
=Yes |
|||||||||
| 02 | Relay timing and valve mechanism | 1 | 34511180595 | $101.25 | ENDED | Shop at ECS Tuning | ||||
| 03 | Relay electr.drive | 1 | 34511157426 | $58.43 | Shop at ECS Tuning | |||||
| 04 | Covering cap | 1 | 34511157766 | $33.25 | Shop at ECS Tuning | |||||
| 05 | Rubber Mounting | 3 | 34511150134 | $2.57 | Shop at ECS Tuning | |||||
| 06 | Suspension | 3 | 34511150132 | $4.33 | Shop at ECS Tuning | |||||
| 07 | Self-locking collar nut | M8-8-ZNS | 3 | 10/1996 | 31331092887 | $0.58 | ENDED | Shop at ECS Tuning | ||
| 08 | Control unit ABS/ASC | 1 | 34521090157 | $888.89 | Shop at ECS Tuning | |||||
| For vehicles with ASC+T |
=Yes |
|||||||||
| 08 | Control unit ABS/ASC+T | 1 | 34521159494 | $1089.63 | Shop at ECS Tuning | |||||
| 09 | Hi-lo screw | 4,9X19 | 2 | 64501380494 | $0.88 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | ST 6.3 | 2 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 11 | Blind plug | D=10MM | 2 | 61131384482 | $0.48 | Shop at ECS Tuning | ||||
| 12 | Relay | 1 | 34521179131 | $111.13 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
