Anti block system-control unit for BMW 7 Series E23 735i (1986)

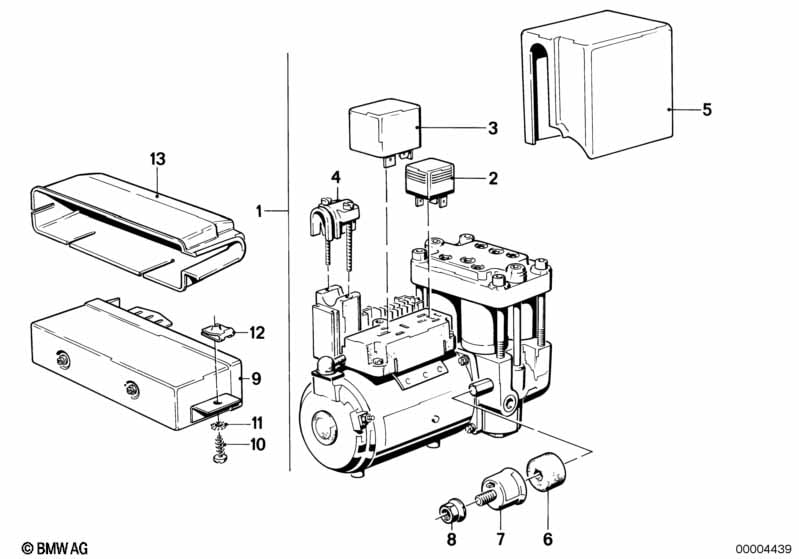

This Anti block system-control unit technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit | 1 | 34511154995 | $3189.45 | ENDED | Shop at ECS Tuning | ||||
| 02 | Relay, valve control, ABS hydraulic unit | 1 | 34511154228 | $18.38 | Shop at ECS Tuning | |||||
| 03 | Relay electr.drive | 1 | 34511179402 | $69.28 | Shop at ECS Tuning | |||||
| 04 | Clamp | 1 | 34511151041 | ENDED | Shop at ECS Tuning | |||||
| 05 | Covering cap | 1 | 34511154994 | $24.55 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 3 | 34511150134 | $2.57 | Shop at ECS Tuning | |||||
| 07 | Suspension | 2 | 34511150132 | $4.33 | Shop at ECS Tuning | |||||
| 08 | Self-locking collar nut | M8-8-ZNS3 | 2 | 06/1986 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 08 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 09 | Control unit ABS | 1 | 34521154999 | $1386.48 | Shop at ECS Tuning | |||||
| 10 | Hex head screw | ST6,3X19-C | 1 | 07119916830 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Tooth washer | A6,4 | 1 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST6,3-2-ZNS3 | 1 | 07129904232 | $0.16 | Shop at ECS Tuning |
