Brake master cylinder for BMW 5 Series E12 520i (1976)

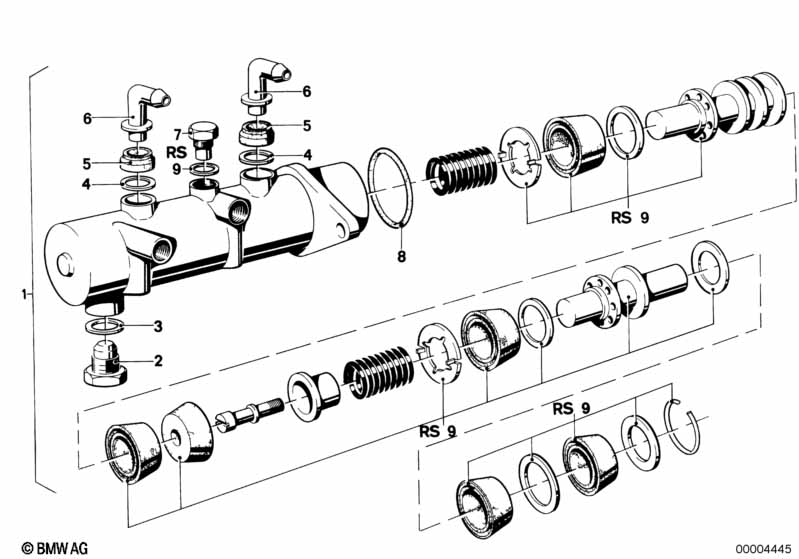

This Brake master cylinder technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sweden version |
=Yes |
|||||||||
| 09 | Repair kit brake master cylinder | D=22,20MM | 1 | 34311150961 | $111.20 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Brake master cylinder | D=22,20MM | X | 34311122145 | $359.35 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520i Brake master cylinder?
- This technical diagram illustrates the Brake master cylinder within the Brakes group for the 5 Series E12 520i produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Repair kit brake master cylinder (Part #34311150961).
- Which models use the hardware listed in this Brake master cylinder?
- The hardware and components featured in the Brake master cylinder are specific to the 5 Series E12 520i produced during 1976. These technical specifications ensure that parts like the Repair kit brake master cylinder (34311150961) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake master cylinder assembly?
- Each item in the Brake master cylinder corresponds to the numbered list below the illustration. For the 5 Series E12 520i, you can identify the Repair kit brake master cylinder by locating its position on the schematic, which then links to the official BMW part number 34311150961 for the Brakes section.
