Brake master cylinder for BMW 6 Series E24 633CSi (1984)

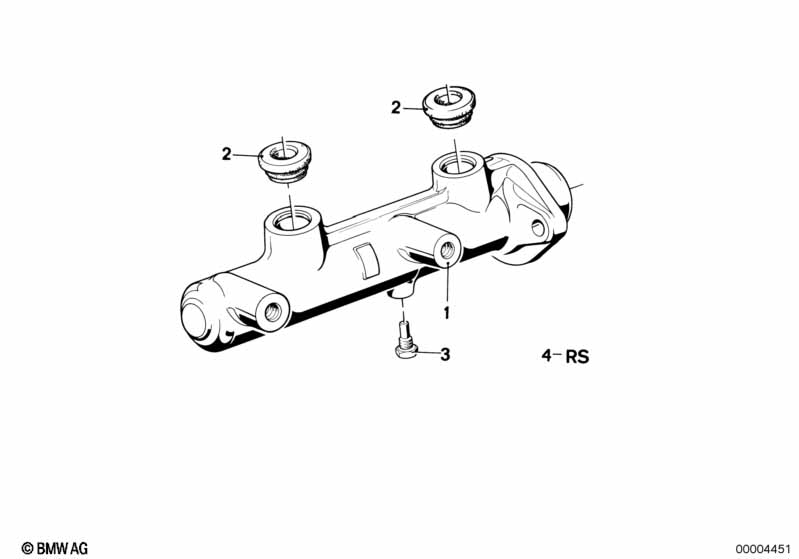

This Brake master cylinder technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake master cylinder | 23,81MM ATE | 1 | 09/1982 | 09/1984 | 34311153053 | $404.76 | Shop at ECS Tuning | ||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 01 | Brake master cylinder | 23,81MM ATE | 1 | 09/1982 | 34311155270 | $404.76 | Shop at ECS Tuning | |||
| 02 | Sealing plug | 2 | 09/1982 | 34311160133 | $5.08 | Shop at ECS Tuning | ||||
| 03 | Stopper bolt outer | ATE | 1 | 09/1982 | 09/1984 | 34311103475 | $4.98 | ENDED | Shop at ECS Tuning | |
| 04 | Repair kit brake master cylinder | ATE | 1 | 09/1982 | 09/1984 | 34311154030 | $219.45 | ENDED | Shop at ECS Tuning | |
| only applies to | ||||||||||
| -- | Brake master cylinder | 23,81MM ATE | X | 09/1982 | 09/1984 | 34311153053 | $404.76 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Brake master cylinder?
- This technical diagram illustrates the Brake master cylinder within the Brakes group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Brake master cylinder (Part #34311153053).
- Which models use the hardware listed in this Brake master cylinder?
- The hardware and components featured in the Brake master cylinder are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Brake master cylinder (34311153053) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake master cylinder assembly?
- Each item in the Brake master cylinder corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Brake master cylinder by locating its position on the schematic, which then links to the official BMW part number 34311153053 for the Brakes section.
