Brake master cylinder/expansion tank for BMW 5 Series E34 525td (1995)

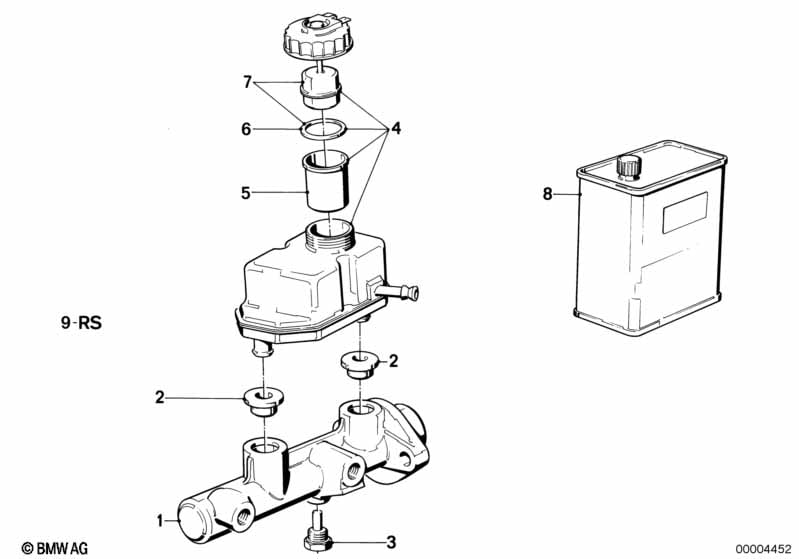

This Brake master cylinder/expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Lucas Girling | |||||||||
| 01 | Brake master cylinder | 1 | 02/1994 | 34311162915 | $589.49 | Shop at ECS Tuning | ||||
| 02 | Plug | 2 | 34311163464 | $6.95 | Shop at ECS Tuning | |||||
| 04 | Expansion tank | GIRLING | 1 | 34321160492 | $85.93 | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 34321157396 | $4.52 | Shop at ECS Tuning | |||||
| 07 | Cap with warning switch | 1 | 34321162810 | $30.33 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525td Brake master cylinder/expansion tank?
- This technical diagram illustrates the Brake master cylinder/expansion tank within the Brakes group for the 5 Series E34 525td produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Brake master cylinder (Part #34311162915).
- Which models use the hardware listed in this Brake master cylinder/expansion tank?
- The hardware and components featured in the Brake master cylinder/expansion tank are specific to the 5 Series E34 525td produced during 1995. These technical specifications ensure that parts like the Brake master cylinder (34311162915) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake master cylinder/expansion tank assembly?
- Each item in the Brake master cylinder/expansion tank corresponds to the numbered list below the illustration. For the 5 Series E34 525td, you can identify the Brake master cylinder by locating its position on the schematic, which then links to the official BMW part number 34311162915 for the Brakes section.
